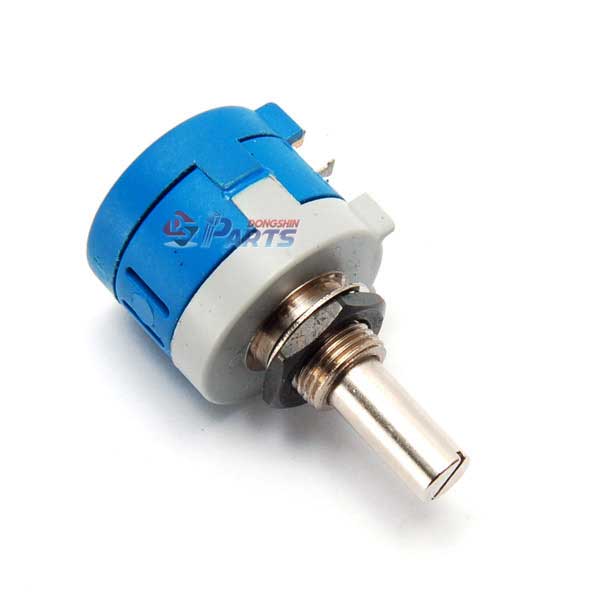

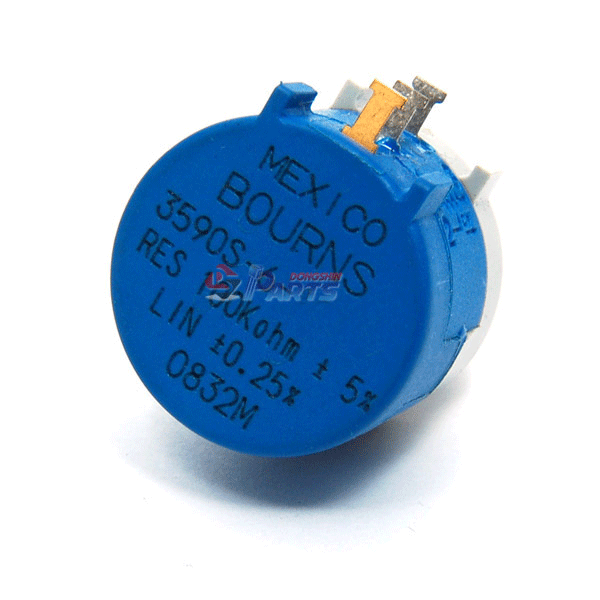

 2W 번스 3590S-6 5KΩ 볼륨가변

 RES ±5%, LIN ±0.25%


판매가격 10,000 원(VAT포함)
모델명 3590S-6-502L
제조원 BOURNS [브랜드 바로가기]
재고 판매중
구매수량 EA


Features

■ Bushing mount
■ Optional AR pin feature
■ Plastic or metal shaft and bushings
■ Wirewound
■ Solder lugs or PC pins
■ Sealable (Full body seal)
■ Designed for use in HMI applications


Electrical Characteristics

Standard Resistance Range...................................................... 200 to 100 K ohms
Total Resistance Tolerance ..................................................... ±5 %
Independent Linearity ............................................................. ±0.25 %
Effective Electrical Angle ........................................................ 3600 ° +10 °, -0 °
Absolute Minimum Resistance................................................1 ohm or 0.1 % maximum (whichever is greater)
Noise ........................................................................................... 100 ohms ENR maximum
Dielectric Withstanding Voltage (MIL-STD-202, Method 301)
     Sea Level ................................................................................1,500 VAC minimum
Power Rating (Voltage Limited By Power Dissipation or 450 VAC, Whichever is Less)
     +40 °C ......................................................................................2 watts
     +125 °C ....................................................................................0 watt
Insulation Resistance (500 VDC) .............................................1,000 megohms minimum
Resolution....................................................................................See recommended part numbers


Environmental Characteristics

Operating Temperature Range .................................................-40 °C to +125 °C
Storage Temperature Range .....................................................-55 °C to +125 °C
Temperature Coeffi cient Over Storage Temperature Range .....±50 ppm/°C maximum/unit
Vibration .........................................................................................15 G
     Wiper Bounce ..........................................................................0.1 millisecond maximum
Shock...............................................................................................50 G
     Wiper Bounce ..........................................................................0.1 millisecond maximum
Load Life ........................................................................................1,000 hours, 2 watts
     Total Resistance Shift .............................................................±2 % maximum
Rotational Life (No Load)............................................................ 1,000,000 shaft revolutions
Total Resistance Shift ..................................................................±5 % maximum
Moisture Resistance (MIL-STD-202, Method 103, Condition B)
     Total Resistance Shift ............................................................±2 % maximum
IP Rating
     Sealed Versions (-3, -4, -7, and -8) .........................................IP 65
     Unsealed Versions (-1 -2, -5, and -6) .....................................IP 40


Mechanical Characteristics

Stop Strength................................................................................45 N-cm (64 oz.-in.) minimum
Mechanical Angle .......................................................................3600 ° +10 °, -0 °
Torque (Starting & Running) ....................................................0.35 N-cm (0.5 oz.-in.) maximum (unsealed)
                                                                                                        1.1 N-cm (1.5 oz.-in.) maximum (sealed)
     Mounting ...............................................................................55-80 N-cm (5-7 lb.-in.) (plastic)
                                                                                                       90-113 N-cm (8-10 in.-lb.) (metal)
Shaft Runout...............................................................................0.13 mm (0.005 in.) T.I.R.
Lateral Runout ..........................................................................0.20 mm (0.008 in.) T.I.R.
Shaft End Play ...........................................................................0.25 mm (0.010 in.) T.I.R.
Shaft Radial Play .......................................................................0.13 mm (0.005 in.) T.I.R.
Pilot Diameter Runout ..............................................................0.08 mm (0.003 in.) T.I.R.
Backlash .................................................................................... 1.0 ° maximum
Weight ........................................................................................Approximately 19 G
Terminals ....................................................................................Solder lugs or PC pins
Soldering Condition
     Manual Soldering.....96.5Sn/3.0Ag/0.5Cu solid wire or no-clean rosin cored wire; 370 °C (700 °F) max. for 3 seconds
     Wave Soldering .......96.5Sn/3.0Ag/0.5Cu solder with no-clean fl ux; 260 °C (500 °F) max. for 5 seconds
     Wash processes ......Not recommended
Marking ......................... Manufacturer’s name and part number, resistance value and tolerance, linearity tolerance, wiring diagram, and date code.
Ganging (Multiple Section Potentiometers) ...........................................1 cup maximum
Hardware ..............................One lockwasher and one mounting nut is shipped with each potentiometer.
