 PROVICE DC ÆÄ¿ö¼­ÇöóÀÌ PS-3003

 1ä³Î, 0~30V, 0~3A


ÆǸŰ¡°Ý 104,500 ¿ø(VATÆ÷ÇÔ)
¸ðµ¨¸í PS3003
Á¦Á¶¿ø
Àç°í
±¸¸Å¼ö·® EA  Ç°Àý


General:
DC Switching Power Supply with accuracy 3 digital meter.
The ouput voltage can be adjusted from 0 to 30 V and the ouput current is from 0 to 3A.

Specifications:
  • Input voltage:AC 220V +/- 10% 50Hz+/-2Hz
  • Output voltage: 0~30V (conti.adj.)
  • Output Current: 0~3A (conti.adj.)
  • Supply Regulation: CV<=1%+10mV
  • Load Regualtion: CV<=1%+5mV
  • Ripple: 200mV (p-p)
  • Protection: Current Limit
  • Meters Indicator accuracy:
    3 digital meters accuracy:
    Volmeter:LCD +/- 1% + 2 Digits
    Ammeter:LCD +/- 1% + 2 Digits
  • Operation Ambient:
    Temperature: 0~40 degree
    Humidity: <RH 80%
    Atmosphere Pressure: 86KPa~104Kpa
  • Operating Time: 8hr . conti.
  • Size: 85*160*205mm

Weight
  • 1.5kg

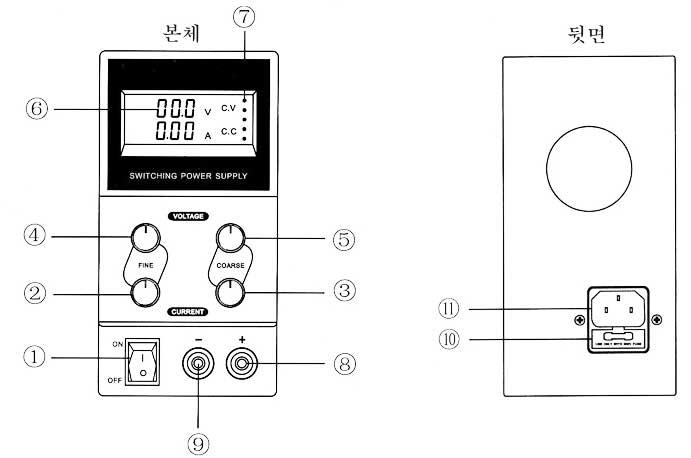

1. Àü¿ø ½ºÀ§Ä¡
2. Ãâ·Â Àü·ùÁ¦ÇÑ ¹Ì¼¼Á¶Á¤ ³ëºê
3. Ãâ·Â Àü·ùÁ¦ÇÑ Á¶Á¤ ³ëºê
4. Ãâ·Â Àü¾Ð ¹Ì¼¼Á¶Á¤ ³ëºê
5. Ãâ·Â Àü¾Ð Á¶Á¤ ³ëºê
6. »ç¿ë Àü¾Ð, Àü·ù Displays(3´ÜÀ§)
7. Àü·ù »óÅÂÇ¥½Ã
8. Ãâ·Â´ÜÀÚ(-) : Ãâ·ÂÄÚµåÀÇ (-,Èæ)ÃøÀ» Á¢¼ÓÇÏ´Â ´ÜÀÚ
9. Ãâ·Â´ÜÀÚ(+) : Ãâ·ÂÄÚµåÀÇ (+,Àû)ÃøÀ» Á¢¼ÓÇÏ´Â ´ÜÀÚ
10. Ç»Áî : 220V 3A
11. ÀÔ·Â Àü¿ø ÄÉÀ̺í
