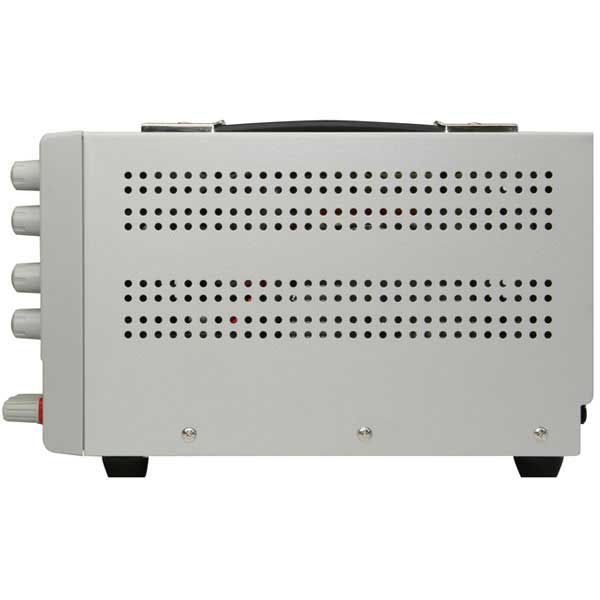

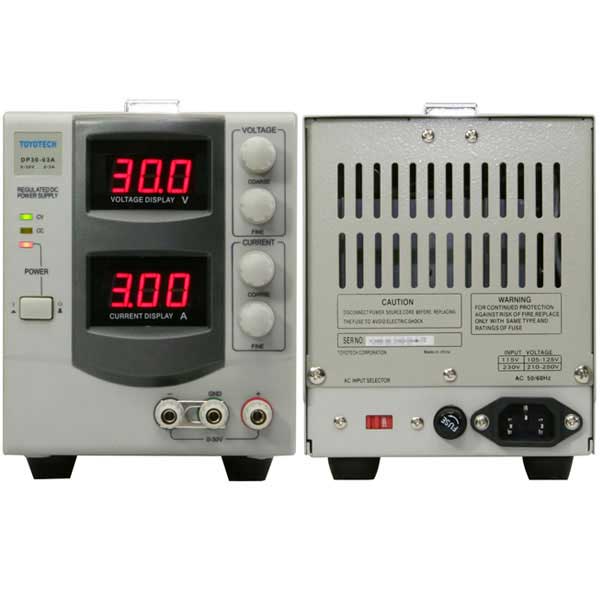

 [TOYOTECH] DC ÆÄ¿ö¼­ÇöóÀÌ DP30-03A

 0~30V(¡¾0.5%rdg+2digit), 0~3A(¡¾0.5%rdg+2digit)


ÆǸŰ¡°Ý 154,000 ¿ø(VATÆ÷ÇÔ)
¸ðµ¨¸í DP30-03A
Á¦Á¶¿ø Any Vendor [ºê·£µå ¹Ù·Î°¡±â]
Àç°í ÆǸÅÁß
±¸¸Å¼ö·® EA


FEATURES

 - °¡º¯Àü¾Ð Ãâ·ÂÀº 0¿¡¼­ °¢ Á¤°Ý Àü¾Ð±îÁö ¿¬¼ÓÀûÀ¸·Î Á¶Á¤ÀÌ °¡´ÉÇÏ¸ç ¶ÇÇÑ Àü·ù´Â Àü·ù°è¿¡ ÀÇÇØ 0¿¡¼­ °¢ Á¤°Ý Àü·ù±îÁö Á¶Á¤ÀÌ °¡´ÉÇÕ´Ï´Ù.

- Áö½Ã ¹× ¼³Á¤Ä¡´Â LED Ç¥½Ã ºÎ¿¡ ÀÇÇØ Ç¥½ÃµË´Ï´Ù.

- ÀÏÁ¤ÇÑ Àü·ù(CC) ¹× ÀÏÁ¤ÇÑ Àü¾Ð(CV) ±â´ÉÀ¸·Î ¾ÈÁ¤µÈ Àü¾Ð ¹× Àü·ù¸¦ Ãâ·ÂÇÕ´Ï´Ù.

- ÃÖ¼ÒÀü·ù ±â´É°ú °úºÎÇÏ º¸È£¹æÁö ±â´É ȸ·Î¸¦ äÅÃÇÏ¿© ¾î¶°ÇÑ »óȲ¿¡¼­µµ ÃøÁ¤¹°À» º¸È£ ÇÒ ¼ö ÀÖµµ·Ï µÇ¾îÀÖ½À´Ï´Ù.



SPECIFICATIONS

  Model Numbers DP30-03A DP30-05A DP30-03C DP30-05C DP30-03CF DP30-05CF
  Main Variable Voltage 0 to 30V 0 to 30V 0 to 30V 0 to 30V 0 to 30V 0 to 30V
  Main Variable Current 0 to 3A 0 to 5A 0 to 3A 0 to 5A 0 to 3A 0 to 5A
  Output Max Power 90W 150W 90W 150W 90W 150W
  Fix Output to Valtage
  and current
- -
5V/1A ¡¾10%
  Voltage and Current
  Indication accuracy
V ¡¾(0.5%rdg+2digit) ¡¾(0.1%rdg+2digit) ¡¾(0.1%rdg+2digit)
A ¡¾(0.5%rdg+2digit) ¡¾(0.5%rdg+2digit) ¡¾(0.1%rdg+2digit)
  Minimum
  setting current
¡Â50mA
  Input fluctuation
(for surge of AC ¡¾10%) ¡¾0.02%+2mA
  Load fluctuation
(for surge of 0 to 100%) ¡Â5mA
  Ripple Voltage
¡Â0.5mV(rms)
  Stability
¡Â5mV
  Atmosphere
0 ~ +40¡É. 80%RH
  AC Power input
115V/230V ¡¾10%, 50Hz/60Hz
  Dimension 130(W) x 160(H) x 260(D)mm 130(W) x 160(H) x 310(D)mm
  Weight 4.7Kg 4.9Kg 4.9Kg 5.1Kg 5.0Kg 5.2Kg
