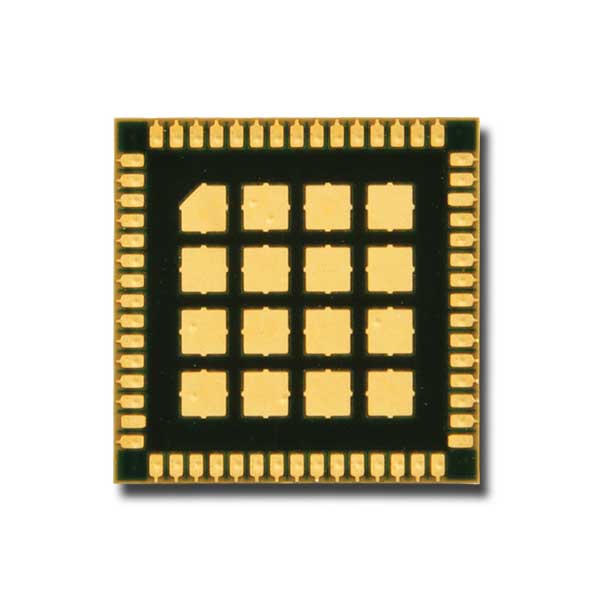

 Internet MCU W7200

 ARM32bit Cortex M3 with hardwired TCP/IP, MAC & PHY


ÆǸŰ¡°Ý 9,900 ¿ø(VATÆ÷ÇÔ)
¸ðµ¨¸í W7200
Á¦Á¶¿ø WIZnet [ºê·£µå ¹Ù·Î°¡±â]
Àç°í ÆǸÅÁß
±¸¸Å¼ö·® EA

TITLE LANGUAGE FILE
W7200 appication note Power down mode v1.1.1 English ZIP
W7200 application note Wake Up on LAN v1.1.1 English ZIP
W7200 appication note SMTP with DHCP v1.1.1 English ZIP
W7200 application note UPnP v1.1.1 English ZIP
W7200 application note Twitter v1.1.1 English ZIP
W7200 appliction note SNMP v1.1.1 English ZIP
W7200 application note SMTP v1.1.1 English ZIP
W7200 application note HTTP server v1.1.1 English ZIP
W7200 application note HTTP client v1.1.1 English ZIP
W7200 appication note FTP client v1.1.1 English ZIP
iMCU7200 EVB Users Guide v1.0.0 English PDF
W7200 Datasheet v1.1.0 English PDF
W7200 User's guide for STM32 Standard library Korean PDF
W7200 Start-up Guide for IAR EWARM Korean PDF
iMCU7200 EVB Schematic v1.0.0 English PDF
W7200 driver v1.2.0 English ZIP
W5200 Errata Sheet Ver.1.0.3 Korean PDF


iMCU W7200 - ARM32bit Cortex M3 with hardwired TCP/IP, MAC & PHY

ARM 32-bit Cortex-M3

   72MHz maximum frequency (1.25 DMIPS/MHz)
   20KBytes Data Memory (RAM)
   128KBytes Code Memory
   Low Power: Support Sleep, Stop and Standby modes
   7 timers
   Three 16-bit timers, each with up to 4 IC/OC/PWM or pulse counter and quadrature (incremental) encoder input
   2 watchdog timers (Independent and Window)
   SysTick timer 24-bit down counter
   Full-duplex UART
   Programmable Watchdog Timer
   CRC calculation unit, 96-bit unique ID
   GPIO, SPI, USART and USB Interfaces
   10BaseT/100BaseTX Ethernet PHY embedded


Hardwired TCP/IP

   Power down mode supported for saving power consumption
   Hardwired TCP/IP Protocols: TCP, UDP, ICMP, IPv4 ARP, IGMP, PPPoE, Ethernet
   Auto Negotiation (Full-duplex and half duplex), Auto MDI/MDIX
   ADSL connection with PPPoE Protocol with PAP/CHAP Authentication mode support
   8 independent sockets which are running simultaneously
   32Kbytes Data buffer for the Network
   Network status LED outputs (TX, RX, Full/Half duplex, Collision, Link, and Speed)
   Not supports IP fragmentation



Block Diagram
