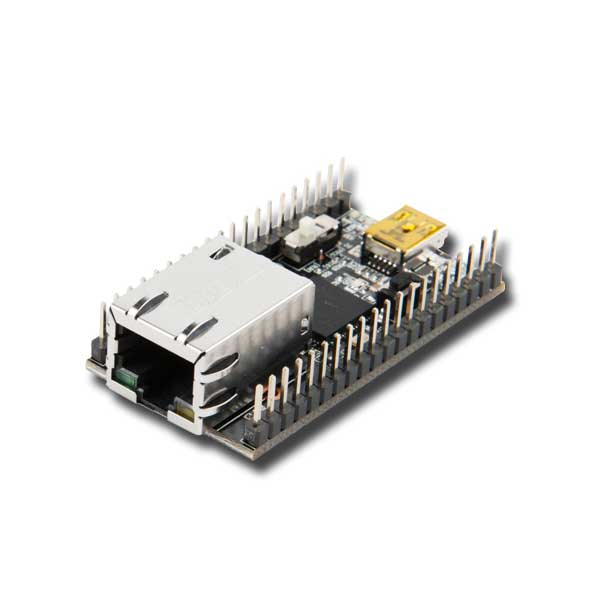

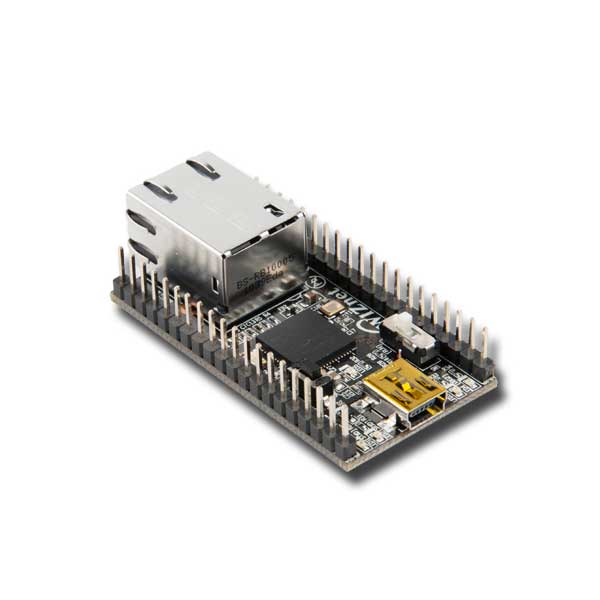

 Internet MCU iMCU7200-EVB

 Evaluation Board for iMCU W7200


ÆǸŰ¡°Ý 144,000 ¿ø(VATÆ÷ÇÔ)
¸ðµ¨¸í iMCU7200-EVB
Á¦Á¶¿ø WIZnet [ºê·£µå ¹Ù·Î°¡±â]
Àç°í ÆǸÅÁß
±¸¸Å¼ö·® EA

TITLE LANGUAGE FILE
W7200 appication note Power down mode v1.1.1 English ZIP
W7200 application note Wake Up on LAN v1.1.1 English ZIP
W7200 appication note SMTP with DHCP v1.1.1 English ZIP
W7200 application note UPnP v1.1.1 English ZIP
W7200 application note Twitter v1.1.1 English ZIP
W7200 appliction note SNMP v1.1.1 English ZIP
W7200 application note SMTP v1.1.1 English ZIP
W7200 application note HTTP server v1.1.1 English ZIP
W7200 application note HTTP client v1.1.1 English ZIP
W7200 appication note FTP client v1.1.1 English ZIP
iMCU7200 EVB Users Guide v1.0.0 English PDF
W7200 Datasheet v1.1.0 English PDF
W7200 User's guide for STM32 Standard library Korean PDF
W7200 Start-up Guide for IAR EWARM Korean PDF
iMCU7200 EVB Schematic v1.0.0 English PDF
W7200 driver v1.2.0 English ZIP
W5200 Errata Sheet Ver.1.0.3 Korean PDF


Features

    Quick Test for W7200 (Cortex-M3 + W5200 core)
    RJ-45 which is integrated transformer
    USB-to-UART interface IC
    40pin expanded header
    2 user LEDs, 2 Serial TX/RX LEDs, 1 Power Indicate LED
    Mode S/W, Reset S/W
    Power source: USB BUS power (500mA) or External VIN (5V)


Specification

Item
Description
Remark
MCU
W7200 (STM32F103CB + W5200)

USB-to-Serial Converter
On board USB-to-UART interface IC, USB bus power
FT232RQ
Ethernet
On board RJ-45 which is integrated transformer
-
LED
User LED 2Ea Serial Status LED 2Ea
-
Button
Reset Switch 1Ea Program Enable Switch 1Ea
-
Expansion Port
MCU port expansion
2.54mm Pitch
PCB
28mm * 52mm Size
-


Block Diagram
