 Arduino TFT LCD Screen


ÆǸŰ¡°Ý 39,000 ¿ø(VATÆ÷ÇÔ)
¸ðµ¨¸í Arduino TFT LCD Screen
Á¦Á¶¿ø ¾ÆµÎÀ̳ë [ºê·£µå ¹Ù·Î°¡±â]
¿ø»êÁö Italy
Àç°í
±¸¸Å¼ö·® EA  Ç°Àý

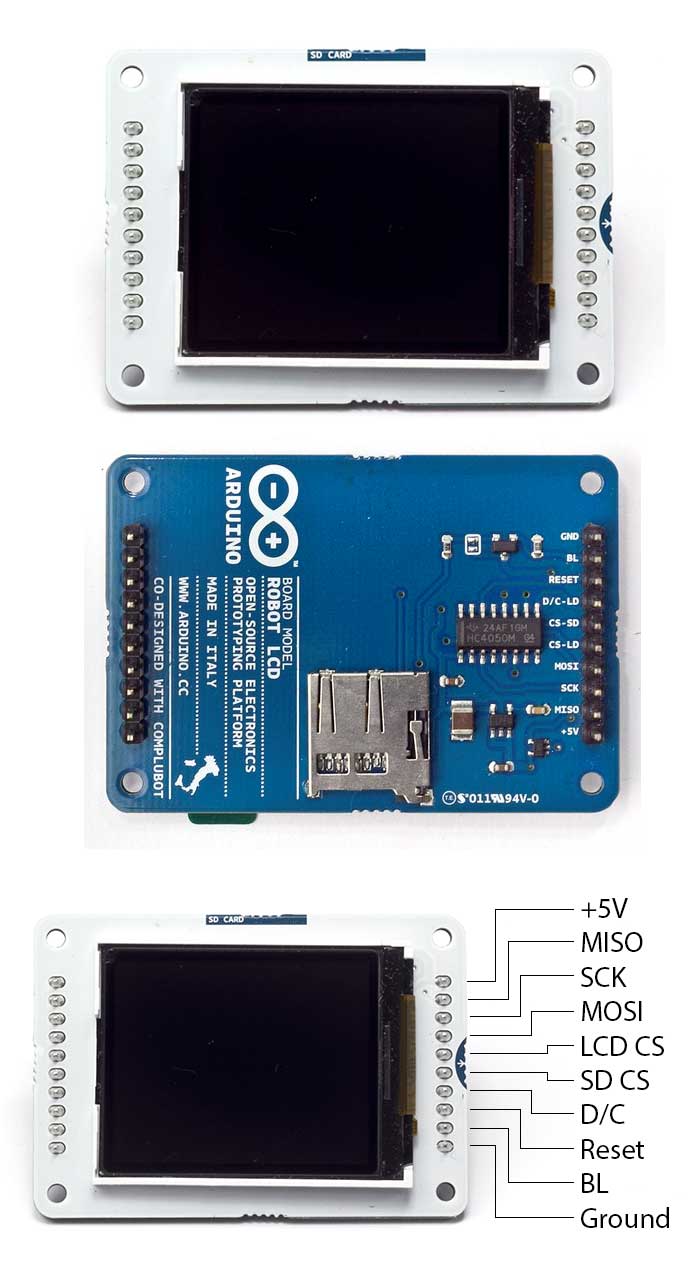

The Arduino Graphic LCD (GLCD) screen is a backlit TFT LCD screen with headers. You can draw text, images, and shapes to the screen with the GLCD library. There is an onboard micro-SD card slot on the back of the screen that can, among other things, store bitmap images for the screen to display.

The screen's headers are designed to fit into the socket on the front of the Arduino Esplora, but it is compatible with any AVR-based Arduino (Uno, Leonardo, etc. Datasheet

The screen is 1.77" diagonal, with 160 x 128 pixel resolution. The TFT library interfaces with the screen's controller through SPI when using the TFT library. Refer to the screen's data sheet for complete details.

The screen runs on +5 VDC

The micro-SD slot is accessible through the SD card library.

The LED backlight is dimmable by PWM.

The screen's headers are laid out so it easily sockets into the Arduino Esplora and Arduino Robot.

You can use this module with Arduino Esplora.

More info on the Arduino product page.
