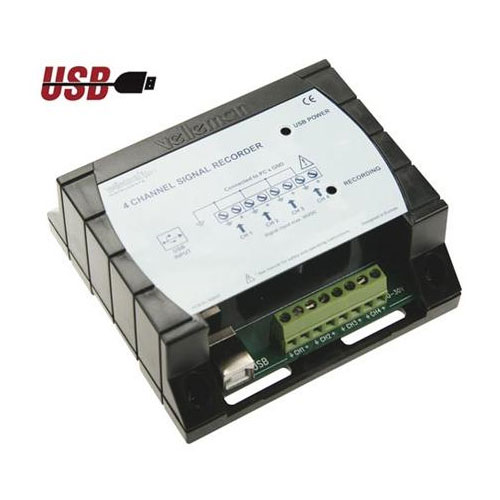

Features

• record DC signals or slow-moving signals over very long periods
• the measurements are automatically stored on your hard disk for further processing
• thanks to the USB connection no power supply is necessary and installation is easy and straightforward
• signals are instantly displayed on the PC screen using an analogue or DVM display
• USB cable included
• PC-LAB2000 Software included
• also available in kit version: K8047

Specifications

• hardware:
  • USB connected and powered
  • four DC-coupled input channels
  • input resistance: 1Mohm
  • maximum samples per second: 100
  • four input ranges: 3V / 6V / 15V and 30V
  • sensitivity: 10mV
  • accuracy: ¡¾3% of full scale
  • maximum input: 30Vdc
  • power and recording/diagnostic LED
• software:

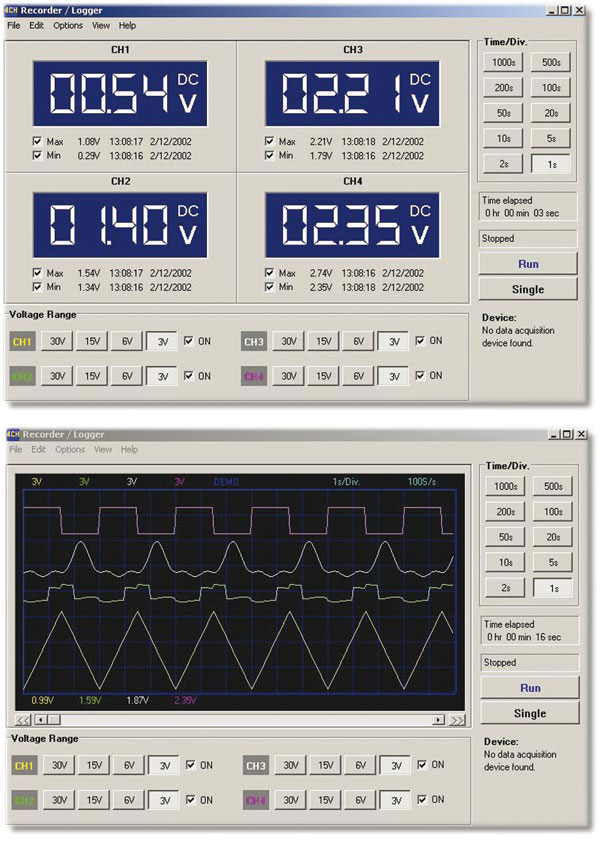

  • analogue trace or DVM readout
  • 4 channels record simultaneously
  • minimum / maximum sample hold function for DVM
  • from 1 sec to 1000 sec per division
  • storage and recall of screens (full colour) or data
  • automatic recording option for long recordings
  • on screen markers for time and voltage
  • DLL included for your own developments
• system requirements:
  • PC, running Win98SE or higher (does not work on WinNT or Win95)
  • free USB port
  • mouse
  • CD-ROM player

¢º Á¦Ç°°ü·ÃÀÚ·á
¸Þ´º¾ó	¢º pcs10_k8047_usbmanual.pdf
pclab2000se ¸Þ´º¾ó	¢º pclab2000se_usermanual.pdf
PCLAB2000SE software package Version 4	¢º pclab2000se_rev4.zip
K8047/PCS10 DLL and example to write your own software	¢º k8047_pcs10_dll.zip
DLL for K8047 (PCS10) for faster communication	¢º k8047_dll_fast.zip
