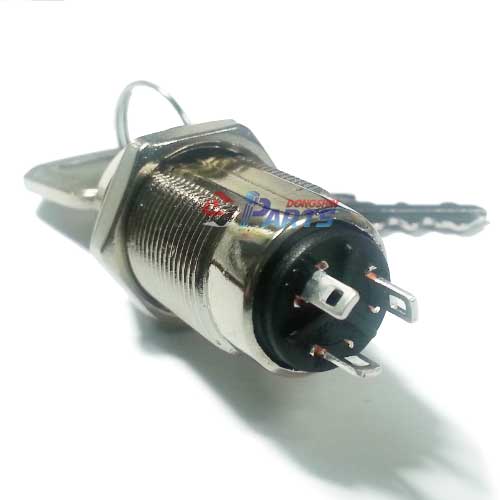

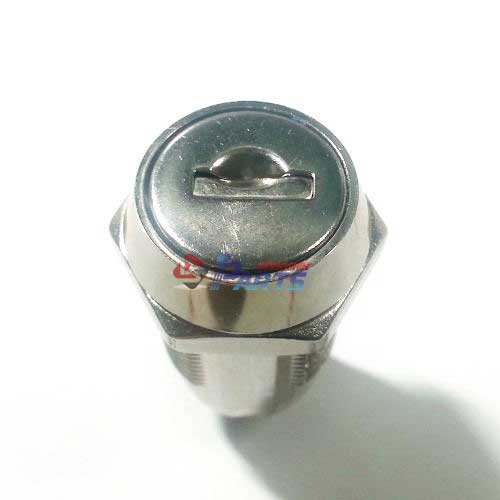

 Å° ½ºÀ§Ä¡ Àá±Ý S236-3C-2 #125

 ¿­¼è:#125 Ȧ:©ª19mm


ÆǸŰ¡°Ý 12,500 ¿ø(VATÆ÷ÇÔ)
¸ðµ¨¸í S236-3C-2
Á¦Á¶¿ø Any Vendor [ºê·£µå ¹Ù·Î°¡±â]
Àç°í ÆǸÅÁß
±¸¸Å¼ö·® EA


¡Ý DESCRIPTION:

  • Zinc alloy die cast housing and cylinder.
  • Bright nickel plated standard.
  • Dust shutter mechanism.
  • 5 disc tumbler mechanism.
  • Reversible double-bitted brass keys, nickel plated.
  • Key may be withdrawn in one or two positions.
  • Silver plated contacts and terminals.
  • 2 position (off-on) 3 terminals.
  • Hex nut mounted.
  • All keyed alike or 25 combinations standard.
  • 100 combinations available.



¡Ý SPECIFICATIONS:

  • Contact Rating: 4A 125VAC, 2A 250VAC
  • Contact Resistance: 10 Milli-Ohms Max.
  • Insulation Resistance: 500 Meg-Ohms Min. (500VDC)
  • Dielectric Strength: 1500 VAC - 1 Minute.




¡Ý KEY-PULL FIGURES :

     -Off Position
     -Indicates Key-Pull
     -Indicates No Key-Pull


Fig. No. Lock Number Pole Positions Terminals Key Pulls Turn Type
1 S236-3C-1 1 2 3 1 90 ¡Æ On On SPDT
2 S236-3C-2 1 2 3 2 90 ¡Æ On On SPDT
