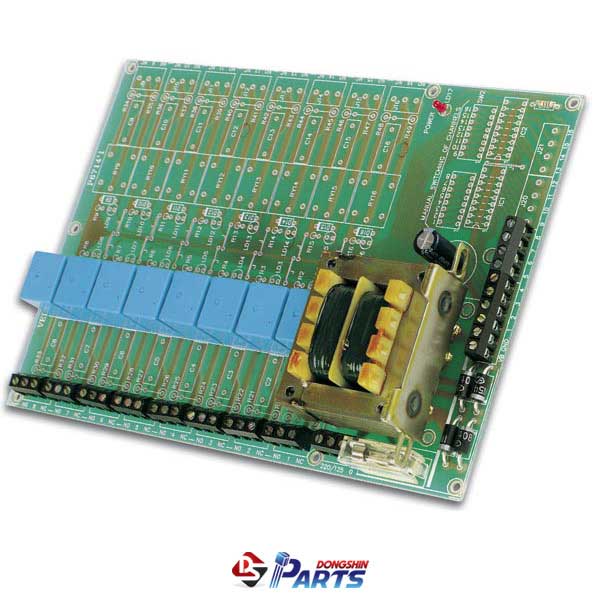

 Universal Relay Card K6714


ÆǸŰ¡°Ý 94,000 ¿ø(VATÆ÷ÇÔ)
¸ðµ¨¸í K6714
Á¦Á¶¿ø Velleman [ºê·£µå ¹Ù·Î°¡±â]
Àç°í
±¸¸Å¼ö·® EA  Ç°Àý


If you want to switch large electric currents using an electronic control and require control isolation at the
same time, then this card is a valuable asset.


Features

 - also available with 16 relays: K6714-16


Specifications

 - 8 relays included (extendible to 16)
 - the relays can be piloted directly of through open-collector outputs
 - contact: 1 x inverter: 10A / 28VDC or 125VAC, max. 5A at 230VAC
 - relay switch-over contact: max. 5A at 220V
 - output voltage: 12V / 250mA for power supply
 - power supply: 220 or 115VAC / 12VA
 - PCB dimensions: 150 x 212mm (5.9" x 8.4")
