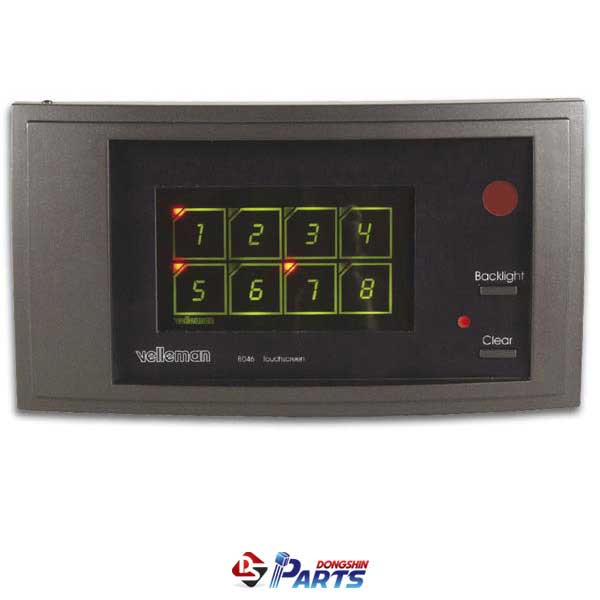

 User-Dependable 8Ch. Touch Panel K8046


ÆǸŰ¡°Ý 105,000 ¿ø(VATÆ÷ÇÔ)
¸ðµ¨¸í K8046
Á¦Á¶¿ø Velleman [ºê·£µå ¹Ù·Î°¡±â]
Àç°í
±¸¸Å¼ö·® EA  Ç°Àý


Ȥ½Ã ¿©·¯ºÐ¸¸ÀÇ Á¦¾îÆdzÚÀ» ¸¸µé¾î º¸°í ½ÍÀº Ã浿À» ´À³¢½ÅÀûÀÌ ¾øÀ¸½Å°¡¿ä?
±×·¸´Ù¸é ÀÌ Å°Æ®°¡ ÃÖÀûÀÇ ¼Ö·ç¼ÇÀÌ µÉ °ÍÀÔ´Ï´Ù.
ÆгÎÀº ¹é¶óÀÌÆ®°¡ µé¾î¿À´Â Åõ¸íÀÇ ¾Ë·ç¹Ì´½ ¹ÚÀ¸·Î µÇ¾îÀÖ½À´Ï´Ù. ÃÑ 4°¡Áö Å°¸ðµå°¡ ÀÖ½À´Ï´Ù.
°¢ Å°´Â momentary ¿Í toggle ±â´ÉÁß Çϳª¸¦ ¼±Åð¡´ÉÇϸç.
·ÎŸ¸® ½ºÀ§Ä¡Ã³·³ ´Ü ÇÑ °³ÀÇ Ãâ·Â¸¸ OnÀÌ µÉ¼ö ÀÖ´Â ¸ðµåµµ ±¸ÇöÀÌ °¡´ÉÇÕ´Ï´Ù.
±×¸®°í ÇÑ Å°´Â ¸®¼Â±â´É Å°·Îµµ ¼³Á¤ÀÌ °¡´ÉÇÕ´Ï´Ù.
ÀÌ·¯ÇÑ µ¶Æ¯ÇÑ Å°º¸µå´Â ±â´ÉÀ» ¼öÇàÇϸ鼭 Ŭ¸¯»ç¿îµå¸¦ ¹ß»ý½ÃÄÑ ±× µ¿ÀÛ¿©ºÎ¸¦ ¾Ë·ÁÁÝ´Ï´Ù.
Ãâ·ÂÀº ¿©·¯ºÐÀÇ ½Ã½ºÅÛ°ú Àß ¿¬°áµÉ °ÍÀÌ¸ç ¶ÇÇÑ ÀúÈñ Å°Æ®¿Íµµ ¿¬°áÀÌ °¡´ÉÇÕ´Ï´Ù.
¿¹¸¦ µé¾î, K8045 LCD message board, K8006 light system bus unit, K8000 computer interface, µîµî


 Features

 • max. 8 self-definable keys
 • LED status indication for each key/output
 • each key can be set up as a toggle key or momentary key

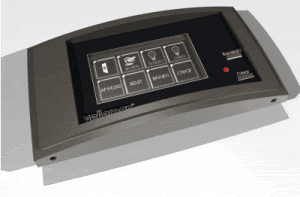

 • soft-touch see-through panel with 8 keys
 • key layout examples are included
 • backlight with dimming function
 • unique key-click feedback
 • optional IR receiver module: IR38DM
 • optional blue backlight: LED3BL (8 pcs required)

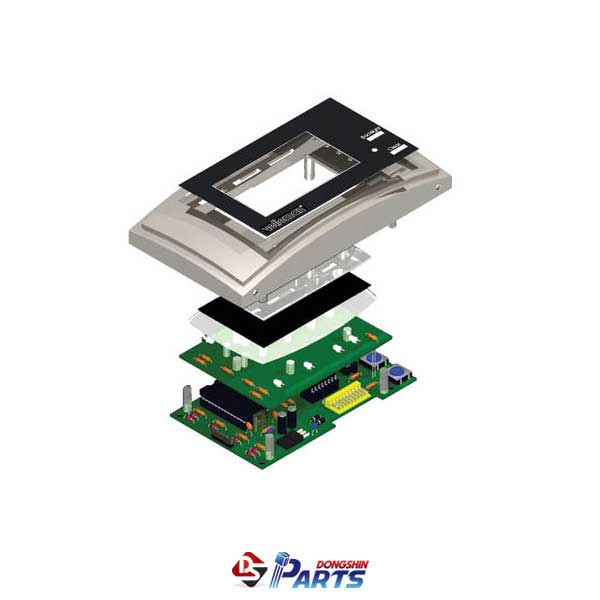

 • "design" mounting frame (bezel) is included

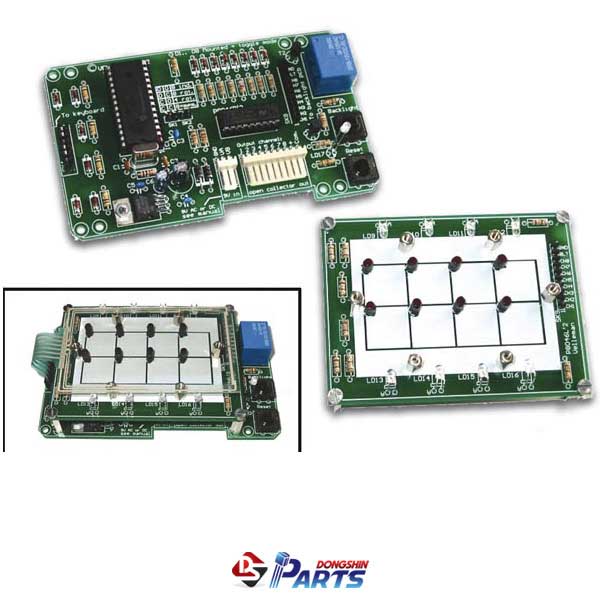

 • easy board-to-wire connectors
 • 4 different functions (jumper selectable):
      ◦ 8 independent keys (toggle or momentary selectable)
      ◦ 8 radio keys (simulation of rotary switch)
      ◦ 4 radio keys and 4 independent keys
      ◦ 1 key is reserved as a memory key or an "all clear"-key


Specifications

 • 8 open-collector switches: max. 50V / 100mA
 • board to wire connectors: 20cm wire
 • dimensions (frame included): 165 x 90 x 35mm (6.5" x 3.5" x 1.4") (depth)
 • keyboard operating force: 40g (with R0.8mm test point)
 • keyboard life: 1000000 operations with R3mm rubber
 • power supply: 9VAC or 12VDC / max. 250mA
 • dimensions: 165 x 90 x 35mm / 6.5 x 3.5 x 1.4"



• <Àý´ë ÁÖÀÇ> ¸ðµç »óÇ°Àº Á¦Ç° ºÒ·®ÀÌ ÀÖÀ» ¼öµµ ÀÖ½À´Ï´Ù. µû¶ó¼­ ¾î¶°ÇÑ °æ¿ì¿¡µµ »óÇ°°¡°Ý ÀÌ»óÀÇ º¸»óÀº ¾ø½À´Ï´Ù.
• ¸ðµç »óÇ°¿¡ ³³¶« µî, »óÇ°¿¡ º¯ÇüÀ» ÁÙ ¼ö ÀÖ´Â ¸ðµç ÀÛ¾÷ ÈÄ¿¡´Â. ºÒ·®ÀÌ ¹ß»ýÇÏ¿©µµ º¸»óÀº ¾ø½À´Ï´Ù.
• »ó±â Á¦Ç°ÀÇ »óÇ° °ü·Ã µ¥ÀÌŸ´Â Âü°í »çÇ×À̹ǷΠÁ¦Ç°¿¡ ´ëÇÑ Å×½ºÆ® ¹× Á¤È®ÇÑ ÀÚ·á È®ÀÎ ÈÄ »ç¿ëÇϽñ⠹ٶø´Ï´Ù.
• °ü·Ã µ¥ÀÌŸ¿¡ ´ëÇÑ ³»¿ë¿¡ ´ëÇØ ¹ß»ýÇÏ´Â ¹®Á¦¿¡ ´ëÇؼ­´Â ¹ýÀûÀΠåÀÓÀ» ÁöÁö ¾Ê½À´Ï´Ù.
