Innovating and impressive code lock.
Impossible to determine the pressed keys due to the use of digital rotary encoder.


 Features

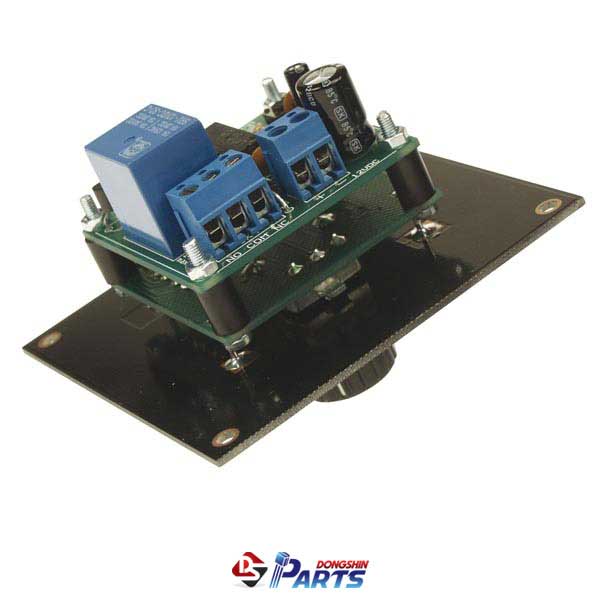

 • codelock with rotary encoder and 7-segment display
 • 4-digit code
 • several operating modes
 • adjustable pulse duration
 • application examples:
     ◦ open a door, gate, fence¡¦
     ◦ arm / disarm your alarm system
     ◦ prevent unauthorized use (mode 3) of car, entertainment systems, computers, machinery¡¦


 Specifications

 • relay output NO/NC: 3A / 24VDC max.
 • power supply: 12VDC / 100mA max.
 • Dimensions:
     ◦front: 85 x 85mm / 3,35 x 3,35"
     ◦ mounting depht: 45mm / 1,77"
