 ¾Æ³ª·Î±× ¼­º¸¸ðÅÍ HS-45HB

 AGTT Feather Servo(GEAR:Karbonite) 4.8V : 1.0Kg/Cm, 4.8V : 0.14sec


ÆǸŰ¡°Ý 30,000 ¿ø(VATÆ÷ÇÔ)
¸ðµ¨¸í HS-45HB
Á¦Á¶¿ø ÇÏÀÌÅØ Hitec [ºê·£µå ¹Ù·Î°¡±â]
Àç°í ÆǸÅÁß
±¸¸Å¼ö·® EA

±âº»»ç¾ç
TORQUE Only 4.8 : 1.0Kg/Cm
SPEED Only 4.8 : 0.14sec
SIZE(LxWxH) 23.6*9.8*22.4mm
WEIGHT 8g


ÇÏÀÌÅØÀÇ HS-45HB´Â ÀúÈñÀÇ À¯¸íÇÑ ¸¶ÀÌÅ©·Î ¼­º¸µéÀÇ °æÁ¦¼º°ú ³»±¸¼º Á¦°øÇϸ鼭µµ º¼ º£¾î¸µÀ» ÅëÇØ Output Shaft¿Í Karbonite ±â¾î¸¦ ÁöÅÊÇØ ÁÖ°í ÀÖ½À´Ï´Ù.


Specifications

Motor Type                : 3 Pole
Bearing Type              : Top Ball Bearing
Speed (4.8V/6.0V)         : 0.14 / 0.12 sec @ 60 deg.
Torque oz./in. (4.8V/6.0V): 14 / 17
Torque kg./cm. (4.8V/6.0V): 1.0 / 1.2

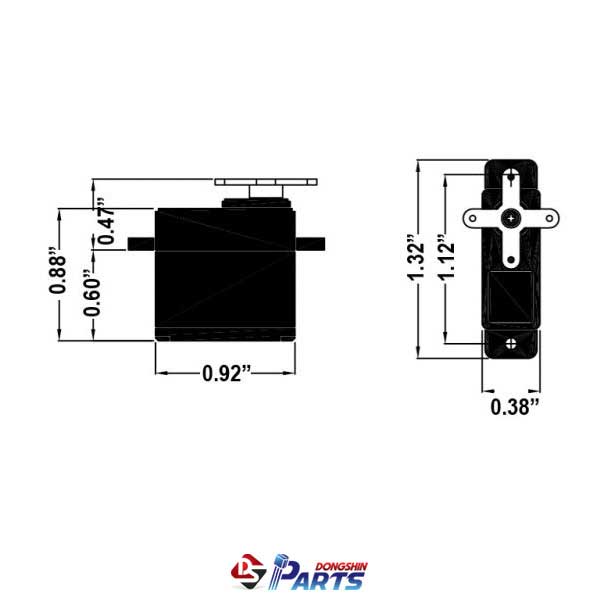

Size in Inches            : 0.92 x 0.38 x 0.88
Size in Millimeters       : 23.37 x 9.65 x 22.35
Weight ounces             : 0.28
Weight grams              : 7.94


Advanced Servo Specifications

Control System                     : +Pulse Width Control 1500usec Neutral
Operating Voltage Range            : 4.8V
Operating Temperature Range        : -20¡ÆC to +60¡ÆC (-4¡ÆF to +140¡ÆF)
Idle Current                       : 8mA
No Load Running Current (4.8V/6.0V): 100mA/60
Stall Current (4.8V/6.0V)          : 440mA
Dead Band Width                    : 5usec
Potentiometer Type                 : 2 Slider/Direct Drive
Connector Wire Length              : 250mm (9.84 in)
Connector Wire Gauge               : 28AWG



• <Àý´ë ÁÖÀÇ> ¸ðµç »óÇ°Àº Á¦Ç° ºÒ·®ÀÌ ÀÖÀ» ¼öµµ ÀÖ½À´Ï´Ù. µû¶ó¼­ ¾î¶°ÇÑ °æ¿ì¿¡µµ »óÇ°°¡°Ý ÀÌ»óÀÇ º¸»óÀº ¾ø½À´Ï´Ù.
• ¸ðµç »óÇ°¿¡ ³³¶« µî, »óÇ°¿¡ º¯ÇüÀ» ÁÙ ¼ö ÀÖ´Â ¸ðµç ÀÛ¾÷ ÈÄ¿¡´Â. ºÒ·®ÀÌ ¹ß»ýÇÏ¿©µµ º¸»óÀº ¾ø½À´Ï´Ù.
• »ó±â Á¦Ç°ÀÇ »óÇ° °ü·Ã µ¥ÀÌŸ´Â Âü°í »çÇ×À̹ǷΠÁ¦Ç°¿¡ ´ëÇÑ Å×½ºÆ® ¹× Á¤È®ÇÑ ÀÚ·á È®ÀÎ ÈÄ »ç¿ëÇϽñ⠹ٶø´Ï´Ù.
• °ü·Ã µ¥ÀÌŸ¿¡ ´ëÇÑ ³»¿ë¿¡ ´ëÇØ ¹ß»ýÇÏ´Â ¹®Á¦¿¡ ´ëÇؼ­´Â ¹ýÀûÀΠåÀÓÀ» ÁöÁö ¾Ê½À´Ï´Ù.
