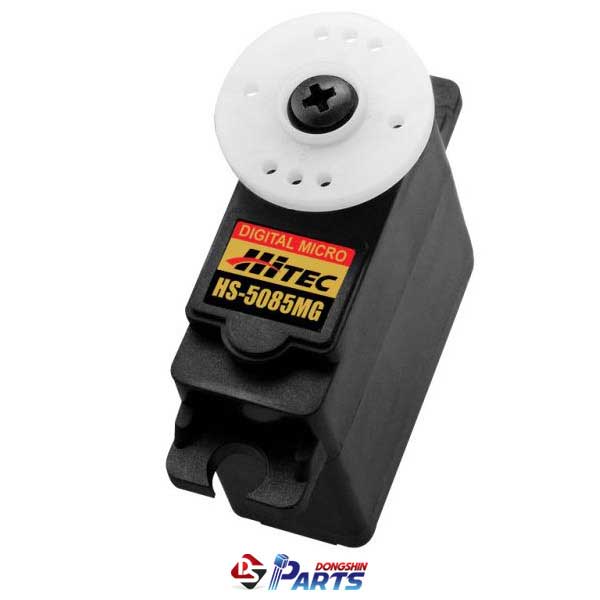

 µðÁöÅÐ ¼­º¸¸ðÅÍ HS-5085MG

 Premium Metal Gear Micro Servo 4.8/6.0V(3.6Kg/4.3Kg), 4.8/6.0V(0.17sec/0.13sec)


ÆǸŰ¡°Ý 64,000 ¿ø(VATÆ÷ÇÔ)
¸ðµ¨¸í HS-5085MG
Á¦Á¶¿ø ÇÏÀÌÅØ Hitec [ºê·£µå ¹Ù·Î°¡±â]
Àç°í ÆǸÅÁß
±¸¸Å¼ö·® EA



ÇÏÀÌÅØÀÇ °¡Àå À¯¸íÇÑ ¹Ì´Ï ¼­º¸ÀÇ µðÁöÅÐ ¹öÀüÀÇ ÇϳªÀÎ HS-5085MG´Â ¼º´ÉÀ» Èñ»ýÇÏÁö ¾ÊÀ¸¸é¼­µµ ¹«°Ô¸¦ ÁÙÀÎ Á¦Ç°À» ã´Â »ç¶÷µé¿¡°Ô ÈǸ¢ÇÑ Á߸³¼º, Resolution ±×¸®°í ³»±¸¼ºÀ» Á¦°øÇÕ´Ï´Ù. ¼ÒÇü ºñÇà±â, Çï±â, º¸Æ®, ÀÚµ¿Â÷ ±×¸®°í Æ®·° µî¿¡ À¯¸íÇÑ ¼­º¸·Î½á HS-5085MG´Â ½ºÇǵå¿Í ÅäÅ©ÀÇ ¶Ù¾î³­ ¹ß¶õ½º¸¦ Á¦°øÇÏ°í ÀÖ½À´Ï´Ù.


Specifications
Motor Type 3 Pole
Bearing Type Top Ball Bearing
Speed (4.8V/6.0V) 0.17 / 0.13
Torque kg./cm. (4.8V/6.0V) 3.6 / 4.3

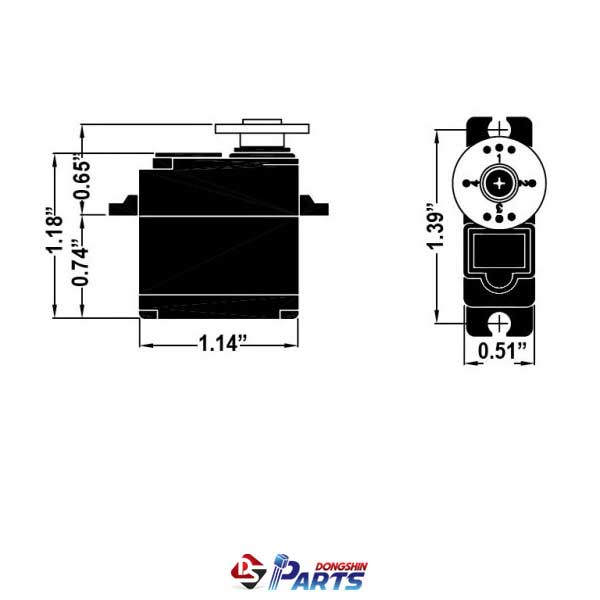

Size in Millimeters(mm) 28.96 x 12.95 x 29.97
Weight grams(g) 21.83


Advanced Servo Specifications
Control System +Pulse Width Control 1500usec Neutral
Operating Voltage Range 4.8V to 6.0V
Operating Temperature Range -20¡Æ to +60¡Æ (-4¡ÆF to +140¡ÆF)
Idle Current 3mA
No Load Running Current (4.8V/6.0V) 230mA/60¡Æ / 290mA/60¡Æ
Stall Current (4.8V/6.0V) 1,700mA / 2,150mA
Dead Band Width 2usec
Potentiometer Type 2 Slider/Direct Drive
Connector Wire Length 250mm (9.84in)
Connector Wire Gauge 28AWG
