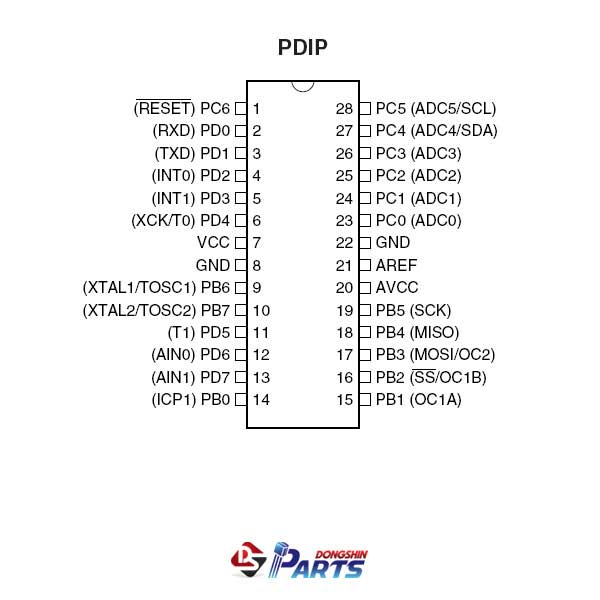

 ATMEGA8L-8PU

 8-bit AVR with 8K Bytes In-System Programmable Flash


판매가격 4,750 원(VAT포함)
모델명 ATMEGA8L-8PU
제조원 ATMEL [브랜드 바로가기]
재고 판매중
구매수량 EA

<STRONG>Features<BR></STRONG><BR>&#8226; High-performance, Low-power AVR? 8-bit Microcontroller<BR>&#8226; Advanced RISC Architecture<BR>&nbsp; &#8211; 130 Powerful Instructions &#8211; Most Single-clock Cycle Execution<BR>&nbsp; &#8211; 32 x 8 General Purpose Working Registers<BR>&nbsp; &#8211; Fully Static Operation<BR>&nbsp; &#8211; Up to 16 MIPS Throughput at 16 MHz<BR>&nbsp; &#8211; On-chip 2-cycle Multiplier<BR>&#8226; Nonvolatile Program and Data Memories<BR>&nbsp; &#8211; 8K Bytes of In-System Self-Programmable Flash<BR>&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp; Endurance: 10,000 Write/Erase Cycles<BR>&nbsp; &#8211; Optional Boot Code Section with Independent Lock Bits<BR>&nbsp;&nbsp;&nbsp;&nbsp;&nbsp; In-System Programming by On-chip Boot Program<BR>&nbsp;&nbsp;&nbsp;&nbsp;&nbsp; True Read-While-Write Operation<BR>&nbsp; &#8211; 512 Bytes EEPROM<BR>&nbsp;&nbsp;&nbsp;&nbsp;&nbsp; Endurance: 100,000 Write/Erase Cycles<BR>&nbsp; &#8211; 1K Byte Internal SRAM<BR>&nbsp; &#8211; Programming Lock for Software Security<BR>&#8226; Peripheral Features<BR>&nbsp; &#8211; Two 8-bit Timer/Counters with Separate Prescaler, one Compare Mode<BR>&nbsp; &#8211; One 16-bit Timer/Counter with Separate Prescaler, Compare Mode, and Capture Mode<BR>&nbsp; &#8211; Real Time Counter with Separate Oscillator<BR>&nbsp; &#8211; Three PWM Channels<BR>&nbsp; &#8211; 8-channel ADC in TQFP and QFN/MLF package<BR>&nbsp;&nbsp;&nbsp;&nbsp;&nbsp; Eight Channels 10-bit Accuracy<BR>&nbsp; &#8211; 6-channel ADC in PDIP package<BR>&nbsp;&nbsp;&nbsp;&nbsp;&nbsp; Eight Channels 10-bit Accuracy<BR>&nbsp; &#8211; Byte-oriented Two-wire Serial Interface<BR>&nbsp; &#8211; Programmable Serial USART<BR>&nbsp; &#8211; Master/Slave SPI Serial Interface<BR>&nbsp; &#8211; Programmable Watchdog Timer with Separate On-chip Oscillator<BR>&nbsp; &#8211; On-chip Analog Comparator<BR>&#8226; Special Microcontroller Features<BR>&nbsp; &#8211; Power-on Reset and Programmable Brown-out Detection<BR>&nbsp; &#8211; Internal Calibrated RC Oscillator<BR>&nbsp; &#8211; External and Internal Interrupt Sources<BR>&nbsp; &#8211; Five Sleep Modes: Idle, ADC Noise Reduction, Power-save, Power-down, and Standby<BR>&#8226; I/O and Packages<BR>&nbsp; &#8211; 23 Programmable I/O Lines<BR>&nbsp; &#8211; 28-lead PDIP, 32-lead TQFP, and 32-pad QFN/MLF<BR>&#8226; Operating Voltages<BR>&nbsp; &#8211; 2.7 - 5.5V (ATmega8L)<BR>&nbsp; &#8211; 4.5 - 5.5V (ATmega8)<BR>&#8226; Speed Grades<BR>&nbsp; &#8211; 0 - 8 MHz (ATmega8L) <BR>&nbsp; &#8211; 0 - 16 MHz (ATmega8)<BR>&#8226; Power Consumption at 4 Mhz, 3V, 25°C<BR>&nbsp; &#8211; Active: 3.6 mA<BR>&nbsp; &#8211; Idle Mode: 1.0 mA<BR>&nbsp; &#8211; Power-down Mode: 0.5 μA


• <절대 주의> 모든 상품은 제품 불량이 있을 수도 있습니다. 따라서 어떠한 경우에도 상품가격 이상의 보상은 없습니다.
• 모든 상품에 납땜 등, 상품에 변형을 줄 수 있는 모든 작업 후에는. 불량이 발생하여도 보상은 없습니다.
• 상기 제품의 상품 관련 데이타는 참고 사항이므로 제품에 대한 테스트 및 정확한 자료 확인 후 사용하시기 바랍니다.
• 관련 데이타에 대한 내용에 대해 발생하는 문제에 대해서는 법적인 책임을 지지 않습니다.
