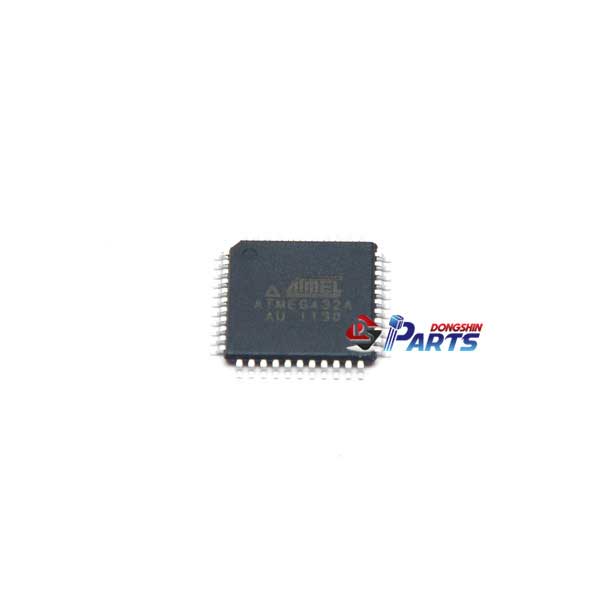

 ATMEGA32A-AU

 8-bit AVR Microcontroller with 32K Bytes In-System Programmable Flash


판매가격 6,000 원(VAT포함)
모델명 ATMEGA32A-AU
제조원 ATMEL [브랜드 바로가기]
재고 판매중
구매수량 EA

Features

• High-performance, Low-power AVR? 8-bit Microcontroller
• Advanced RISC Architecture
  – 131 Powerful Instructions – Most Single-clock Cycle Execution
  – 32 x 8 General Purpose Working Registers
  – Fully Static Operation
  – Up to 16 MIPS Throughput at 16 MHz
  – On-chip 2-cycle Multiplier
• High Endurance Non-volatile Memory segments
  – 32K Bytes of In-System Self-programmable Flash program memory
  – 1024 Bytes EEPROM
  – 2K Byte Internal SRAM
  – Write/Erase Cycles: 10,000 Flash/100,000 EEPROM
  – Data retention: 20 years at 85°C/100 years at 25°C(1)
  – Optional Boot Code Section with Independent Lock Bits
      • In-System Programming by On-chip Boot Program
      • True Read-While-Write Operation
  – Programming Lock for Software Security
• JTAG (IEEE std. 1149.1 Compliant) Interface
  – Boundary-scan Capabilities According to the JTAG Standard
  – Extensive On-chip Debug Support
  – Programming of Flash, EEPROM, Fuses, and Lock Bits through the JTAG Interface
• Peripheral Features
  – Two 8-bit Timer/Counters with Separate Prescalers and Compare Modes
  – One 16-bit Timer/Counter with Separate Prescaler, Compare Mode, and Capture Mode
  – Real Time Counter with Separate Oscillator
  – Four PWM Channels
  – 8-channel, 10-bit ADC
      • 8 Single-ended Channels
      • 7 Differential Channels in TQFP Package Only
      • 2 Differential Channels with Programmable Gain at 1x, 10x, or 200x
  – Byte-oriented Two-wire Serial Interface
  – Programmable Serial USART
  – Master/Slave SPI Serial Interface
  – Programmable Watchdog Timer with Separate On-chip Oscillator
  – On-chip Analog Comparator
•Special Microcontroller Features
  – Power-on Reset and Programmable Brown-out Detection
  – Internal Calibrated RC Oscillator
  – External and Internal Interrupt Sources
  – Six Sleep Modes: Idle, ADC Noise Reduction, Power-save, Power-down, Standby and Extended Standby
• I/O and Packages
  – 32 Programmable I/O Lines

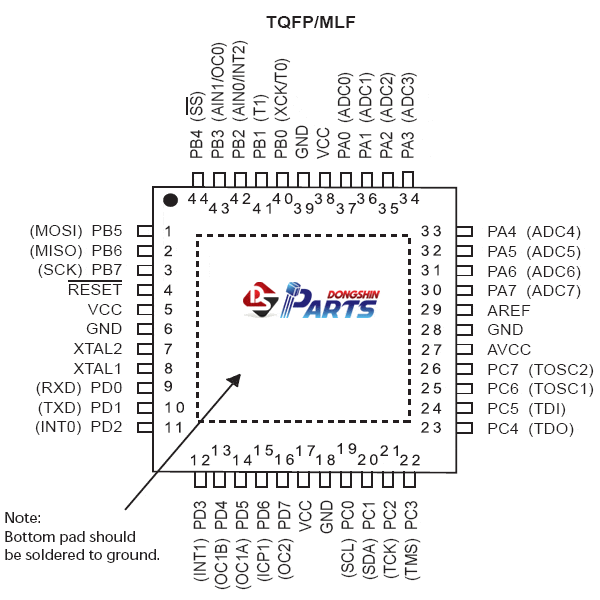

  – 40-pin PDIP, 44-lead TQFP, and 44-pad QFN/MLF
• Operating Voltages
  – 2.7 - 5.5V for ATmega32A
• Speed Grades
  – 0 - 16 MHz for ATmega32A
• Power Consumption at 1 MHz, 3V, 25°C for ATmega32A
  – Active: 0.6 mA
  – Idle Mode: 0.2 mA
  – Power-down Mode: < 1 μA


• <절대 주의> 모든 상품은 제품 불량이 있을 수도 있습니다. 따라서 어떠한 경우에도 상품가격 이상의 보상은 없습니다.
• 모든 상품에 납땜 등, 상품에 변형을 줄 수 있는 모든 작업 후에는. 불량이 발생하여도 보상은 없습니다.
• 상기 제품의 상품 관련 데이타는 참고 사항이므로 제품에 대한 테스트 및 정확한 자료 확인 후 사용하시기 바랍니다.
• 관련 데이타에 대한 내용에 대해 발생하는 문제에 대해서는 법적인 책임을 지지 않습니다.
