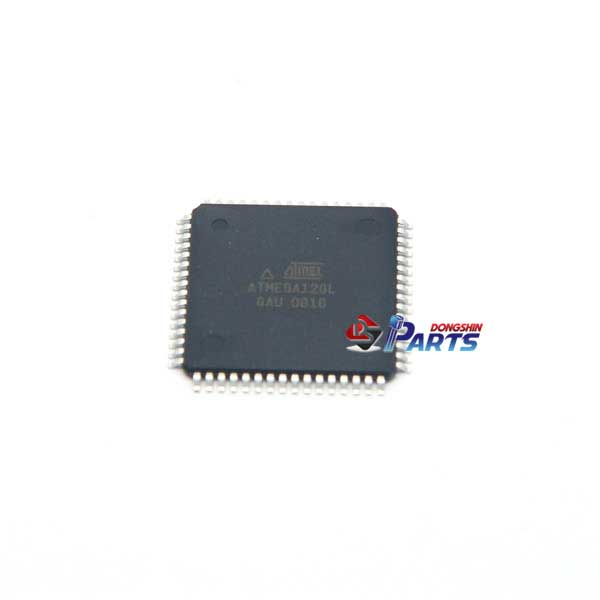

 ATMEGA128L-8AU

 8-bit AVR Microcontroller with 128K Bytes In-System Programmable Flash


ÆǸŰ¡°Ý 7,700 ¿ø(VATÆ÷ÇÔ)
¸ðµ¨¸í ATMEGA128L-8AU
Á¦Á¶¿ø ATMEL [ºê·£µå ¹Ù·Î°¡±â]
Àç°í
±¸¸Å¼ö·® EA  Ç°Àý

Features

• High-performance, Low-power AVR? 8-bit Microcontroller
• Advanced RISC Architecture
  – 133 Powerful Instructions – Most Single Clock Cycle Execution
  – 32 x 8 General Purpose Working Registers + Peripheral Control Registers
  – Fully Static Operation
  – Up to 16 MIPS Throughput at 16 MHz
  – On-chip 2-cycle Multiplier
• Nonvolatile Program and Data Memories
  – 128K Bytes of In-System Reprogrammable Flash
      Endurance: 10,000 Write/Erase Cycles
  – Optional Boot Code Section with Independent Lock Bits
      In-System Programming by On-chip Boot Program
      True Read-While-Write Operation
  – 4K Bytes EEPROM
      Endurance: 100,000 Write/Erase Cycles
  – 4K Bytes Internal SRAM
  – Up to 64K Bytes Optional External Memory Space
  – Programming Lock for Software Security
  – SPI Interface for In-System Programming
• JTAG (IEEE std. 1149.1 Compliant) Interface
  – Boundary-scan Capabilities According to the JTAG Standard
  – Extensive On-chip Debug Support
  – Programming of Flash, EEPROM, Fuses and Lock Bits through the JTAG Interface
• Peripheral Features
  – Two 8-bit Timer/Counters with Separate Prescalers and Compare Modes
  – Two Expanded 16-bit Timer/Counters with Separate Prescaler, Compare Mode and Capture Mode
  – Real Time Counter with Separate Oscillator
  – Two 8-bit PWM Channels
  – 6 PWM Channels with Programmable Resolution from 2 to 16 Bits
  – Output Compare Modulator
  – 8-channel, 10-bit ADC
      8 Single-ended Channels
      7 Differential Channels
      2 Differential Channels with Programmable Gain at 1x, 10x, or 200x
  – Byte-oriented Two-wire Serial Interface
  – Dual Programmable Serial USARTs
  – Master/Slave SPI Serial Interface
  – Programmable Watchdog Timer with On-chip Oscillator
  – On-chip Analog Comparator
• Special Microcontroller Features
  – Power-on Reset and Programmable Brown-out Detection
  – Internal Calibrated RC Oscillator
  – External and Internal Interrupt Sources
  – Six Sleep Modes: Idle, ADC Noise Reduction, Power-save, Power-down, Standby, and Extended Standby
  – Software Selectable Clock Frequency
  – ATmega103 Compatibility Mode Selected by a Fuse
  – Global Pull-up Disable

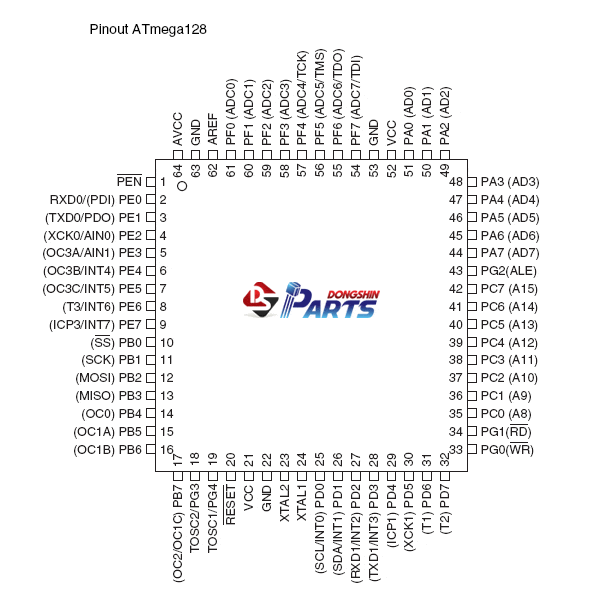

• I/O and Packages
  – 53 Programmable I/O Lines
  – 64-lead TQFP and 64-pad QFN/MLF
• Operating Voltages
  – 2.7 - 5.5V for ATmega128L
  – 4.5 - 5.5V for ATmega128
• Speed Grades
  – 0 - 8 MHz for ATmega128L
  – 0 - 16 MHz for ATmega128
