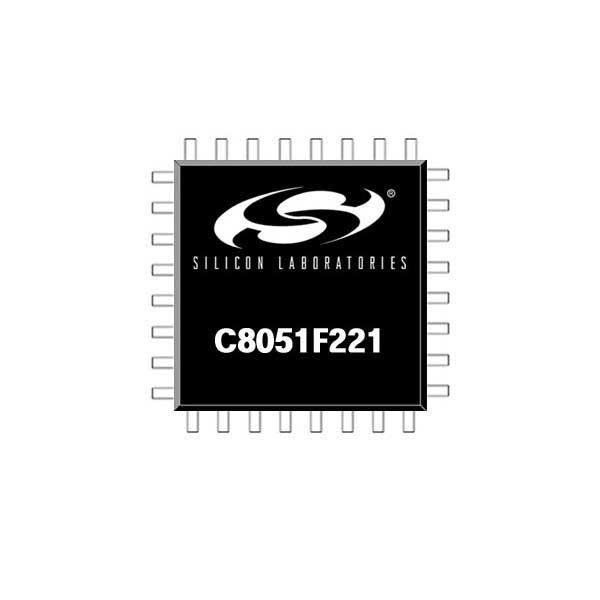

 C8051F221-GQ

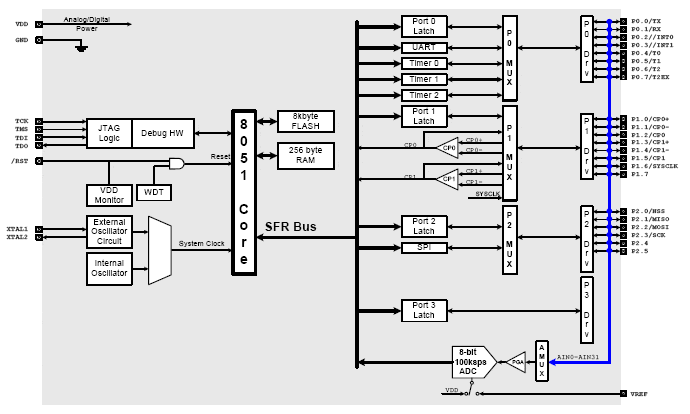

 25 MIPS, 8 kB Flash, 8-Bit ADC, 32-Pin Mixed-Signal MCU


ÆǸŰ¡°Ý 7,040 ¿ø(VATÆ÷ÇÔ)
¸ðµ¨¸í C8051F221-GQ
Á¦Á¶¿ø Silicon Labs [ºê·£µå ¹Ù·Î°¡±â]
Àç°í ÆǸÅÁß
±¸¸Å¼ö·® EA

Analog Peripherals

8-Bit ADC
  - ¡¾1/2 LSB INL; no missing codes
  - Programmable throughput up to 100 ksps
  - 32 external inputs (each port I/O can be configured as an ADC input onthe-fly)
  - Programmable amplifier gain: 16, 8, 4, 2, 1, 0.5
  - Data-dependent windowed interrupt generator
  - VREF from external pin or VDD

Two comparators
  - Programmable hysteresis
  - Configurable to generate interrupts or reset

VDD Monitor and Brown-out Detector

On-Chip JTAG Debug
  - On-chip emulation circuitry facilitates full-speed, non-intrusive, in-circuit emulation
  - Supports breakpoints, single stepping, watchpoints, inspect/modify memory, and registers
  - Superior performance to emulation systems using ICE-chips, target pods, and sockets
  - Fully compliant with IEEE 1149.1 specification

Temperature Range: –40 to +85 ¡ÆC

High-Speed 8051 ¥ìC Core
  - Pipelined instruction architecture; executes 70% of instructions in 1 or 2 system clocks
  - Up to 25 MIPS throughput with 25 MHz system clock
  - Expanded interrupt handler; up to 21 interrupt sources

Memory
  - 256 bytes data RAM
  - 8 kB Flash; in-system programmable in 512 byte sectors (512 bytes are reserved)

Digital Peripherals
  - 22 port I/O; all are 5 V tolerant
  - Hardware SPI¢â and UART serial ports available concurrently
  - 3 general-purpose 16-bit counter/timers
  - Dedicated watchdog timer; bidirectional reset

Clock Sources
  - Internal programmable oscillator: 2–16 MHz
  - External oscillator: Crystal, RC, C, or Clock
  - Can switch between clock sources on-the-fly

Supply Voltage: 2.7 to 3.6 V
  - Typical operating current: 9 mA at 25 MHz
  - Typical stop mode current: <0.1 ¥ìA

Package
  - 32-pin LQFP (lead-free package)
