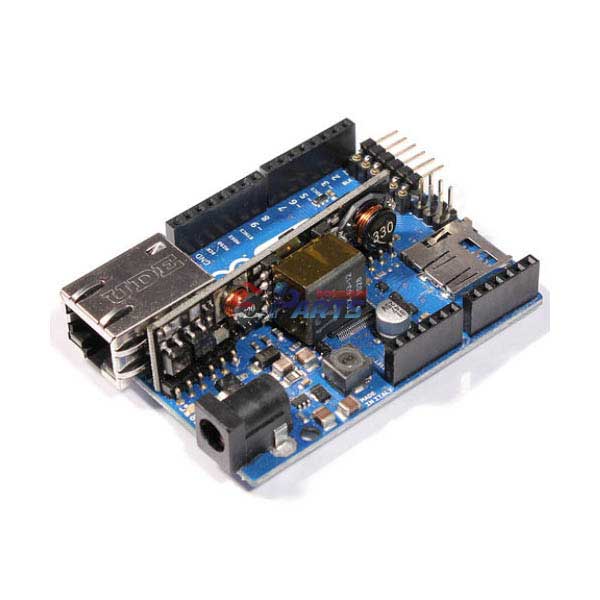

 Arduino Ethernet with PoE module

 ¾ÆµÎÀ̳ë ÀÌ´õ³Ý´Â ¾ÆµÎÀÌ³ë ¿ì³ë¿Í À§Áî³Ý ÀÌ´õ³Ý ÄÁÆ®·Ñ·¯¸¦ ÅëÇÕÇÑ º¸µåÀÔ´Ï´Ù.(POE ¸ðµâ ºÎÂø ¸ðµ¨)


ÆǸŰ¡°Ý 105,000 ¿ø(VATÆ÷ÇÔ)
¸ðµ¨¸í Arduino Ethernet with PoE module
Á¦Á¶¿ø ¾ÆµÎÀ̳ë [ºê·£µå ¹Ù·Î°¡±â]
Àç°í
±¸¸Å¼ö·® EA  Ç°Àý


Arduino Ethernet with PoE module

"¾ÆµÎÀ̳ë ÀÌ´õ³Ý"Àº "¾ÆµÎÀÌ³ë ¿ì³ë"¿Í À§Áî³Ý ÀÌ´õ³Ý ÄÁÆ®·Ñ·¯¸¦ ÅëÇÕÇÑ º¸µåÀÔ´Ï´Ù

Arduino Ethernet = Arduino Uno + WizNet W5100 TCP/IP Embedded Ethernet Controller

¾ÆµÎÀ̳ë ÀÌ´õ³ÝÀº FTDI ¹æ½ÄÀÇ ½Ã¸®¾ó ÄÁ³ØÅ͸¦ ÅëÇØ ÇÁ·Î±×·¥ µÉ ¼ö ÀÖ½À´Ï´Ù. FTDI ¹æ½ÄÀÇ USB-to-Serial ÄÁ³ØÅͷεµ ÇÁ·Î±×·¥À» ³ÖÀ» ¼ö ÀÖ½À´Ï´Ù. ¹Ù·Î ³¢¿ö¾µ ¼ö ÀÖ´Â, ¾ÆµÎÀ̳ë ÀÌ´õ³Ý Àü¿ëÀÇ USB Serial Light Adapter¸¦ »ç¿ëÇϽøé ÇÁ·Î±×·¥½Ã¿¡ ¿ÀÅä ¸®¼ÂÀÌ Áö¿øµÇ¹Ç·Î ´õ Æí¸®ÇÕ´Ï´Ù.

POE ¸ðµâ(power-over-Ethernet )ÀÌ º¸µå¿¡ ³³¶«À¸·Î ºÎÂøµÇ¾î ÀÖ½À´Ï´Ù. ÀÌ POE¸ðµâÀº ÀÌ´õ³Ý ÄÉÀ̺í(twisted pair Category 5)·Î ºÎÅÍ Àü¿øÀ» ¹Þ¾Æ ¾ÆµÎÀ̳ë ÀÌ´õ³Ý¿¡ °ø±ÞÇÏ´Â ¿ªÇÒÀ» ÇÕ´Ï´Ù. IEEE802.3af ȣȯÀÌ°í, ÇöÀç »ç¿ëµÇ°í ÀÖ´Â ¸ðµç POE ȣȯ injecor¿Í ÇÔ²² »ç¿ëÇÒ ¼ö ÀÖ½À´Ï´Ù.

º¸µå¿¡ ÀåÂøµÇ¾î ÀÖ´Â SDÄ«µå ¸®´õ´Â, ³×Æ®¿öÅ©¸¦ ÅëÇØ Àü¼ÛÇÒ ÆÄÀÏÀ» ÀúÀåÇϴµ¥ »ç¿ëÇÒ ¼ö ÀÖ½À´Ï´Ù. (SD Library ¸µÅ©)

Techinal Specifications

Microcontroller ATmega328
Operating Voltage 5V
Input Voltage (recommended) 7-12V
Input Voltage (limits) 6-20V
Digital I/O Pins 14 (of which 4 provide PWM output)
  • Arduino Pins reserved
    • 10 to 13 used for SPI
    • 4 used for SD card
    • 2 W5100 interrupt (when bridged)
Analog Input Pins 6
DC Current per I/O Pin 40 mA
DC Current for 3.3V Pin 50 mA
Flash Memory 32 KB (ATmega328) of which 0.5 KB used by bootloader
SRAM 2 KB (ATmega328)
EEPROM 1 KB (ATmega328)
Clock Speed 16 MHz
W5100 TCP/IP Embedded Ethernet Controller
Power Over Ethernet ready Magnetic Jack
Micro SD card, with active voltage translators

Arduino Ethernet Official Page
