| 제품 모델명 |

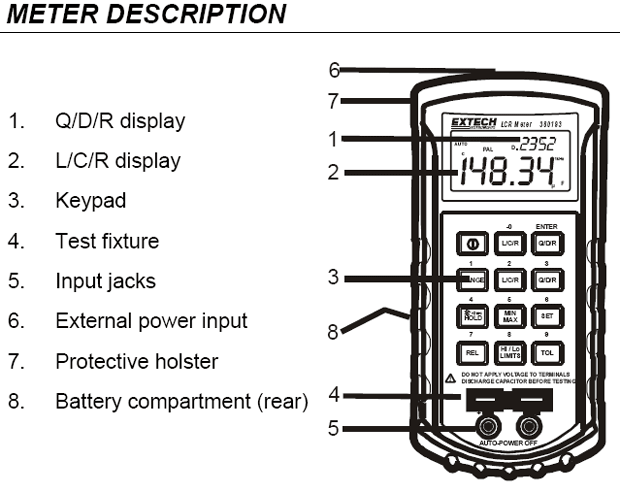

EXTECH 380193 |
| Capacitance @ 120Hz |
| RANGE |
Cx accuracy |
DF accuracy |
| 9.999mF |
±(5.0% rdg + 5d) (DF<0.1) |
±(10%rdg + 100/Cx + 5d) (DF<0.1) |
| 1999.9μF |
±(1.0% rdg + 5d) (DF<0.1) |
±(2%rdg + 100/Cx + 5d) (DF<0.1) |
| 199.99μF |
±(0.7% rdg + 3d) (DF<0.5) |
±(0.7%rdg + 100/Cx + 5d) (DF<0.1) |
| 19.999μF |
±(0.7% rdg + 3d) (DF<0.5) |
±(0.7%rdg + 100/Cx + 5d) (DF<0.1) |
| 1999.9nF |
±(0.7% rdg + 3d) (DF<0.5) |
±(0.7%rdg + 100/Cx + 5d) (DF<0.1) |
| 199.99nF |
±(0.7% rdg + 5d) (DF<0.5) |
±(0.7%rdg + 100/Cx + 5d) (DF<0.5) |
| 19.999nF |
±(1.0% rdg + 5d) (DF<0.1) |
±(2.0%rdg + 100/Cx + 5d) (DF<0.1) |
| |
| Capacitance @ 1kHz |
| RANGE |
Cx accuracy |
DF accuracy |
| 999.9μF |
±(5.0% rdg + 5d) (DF<0.1) |
±(10%rdg + 100/Cx + 5d) (DF<0.1) |
| 199.99μF |
±(1.0% rdg + 3d) (DF<0.5) |
|
| 19.999μF |
±(0.7% rdg + 3d) (DF<0.5) |
±(0.7%rdg + 100/Cx + 5d) (DF<0.1) |
| 1999.9nF |
±(0.7% rdg + 3d) (DF<0.5) |
±(0.7%rdg + 100/Cx + 5d) (DF<0.1) |
| 199.99nF |
±(0.7% rdg + 5d) (DF<0.5) |
±(0.7%rdg + 100/Cx + 5d) (DF<0.1) |
| 19.999nF |
±(0.7% rdg + 5d) (DF<0.1) |
±(0.7%rdg + 100/Cx + 5d) (DF<0.1) |
| 1999.9pF |
±(1.0% rdg + 5d) (DF<0.1) |
±(2.0%rdg + 100/Cx + 5d) (DF<0.1) |
| |
| Inductance @ 120Hz |
| RANGE |
Lx accuracy (DF<0.5) |
DF accuracy (DF<0.5) |
| 10000H |
Not specified |
Not specified |
| 1999.9H |
±(1.0%rdg + Lx/10000 + 5d) |
±(2.0%rdg + 100/Lx + 5d) |
| 199.99H |
±(0.7%rdg + Lx/10000 + 5d) |
±(1.2%rdg + 100/Lx + 5d) |
| 19.999H |
±(0.7%rdg + Lx/10000 + 5d) |
±(1.2%rdg + 100/Lx + 5d) |
| 1999.9mH |
±(0.7%rdg + Lx/10000 + 5d) |
±(1.2%rdg + 100/Lx + 5d) |
| 199.99mH |
±(1.0%rdg + Lx/10000 + 5d) |
±(3.0%rdg + 100/Lx + 5d) |
| 19.999mH |
±(2.0%rdg + Lx/10000 + 5d) |
±(10%rdg + 100/Lx + 5d) |
| |
| Inductance @ 1kHz |
| RANGE |
Lx accuracy (DF<0.5) |
DF accuracy (DF<0.5) |
| 1999.9H |
Not specified |
Not specified |
| 199.99H |
±(1.0%rdg + Lx/10000 + 5d) |
±(1.2%rdg + 100/Lx + 5d) |
| 19.999H |
±(0.7%rdg + Lx/10000 + 5d) |
±(1.2%rdg + 100/Lx + 5d) |
| 1999.9mH |
±(0.7%rdg + Lx/10000 + 5d) |
±(1.2%rdg + 100/Lx + 5d) |
| 199.99mH |
±(0.7%rdg + Lx/10000 + 5d) |
±(1.2%rdg + 100/Lx + 5d) |
| 19.999mH |
±(1.2%rdg + Lx/10000 + 5d) |
±(5.0%rdg + 100/Lx + 5d) |
| 1999.9μH |
±(2.0%rdg + Lx/10000 + 5d) |
±(10%rdg + 100/Lx + 5d) |
Note: Where Lx or Cx is the the C or L reading in the display without range indication.
i.e. For a reading of 18.888, use 18888 as the factor. |
| |
| Resistance |
| RANGE |
accuracy (1kHz & 120Hz) |
| 10.000MΩ |
±(2.0%rdg + 8d) |
| 1.9999MΩ |
±(0.5%rdg + 5d) |
| 199.99kΩ |
±(0.5%rdg + 3d) |
| 19.999kΩ |
±(0.5%rdg + 3d) |
| 1.9999kΩ |
±(0.5%rdg + 3d) |
| 199.99Ω |
±(0.8%rdg + 5d) |
| 0.020 to 19.999Ω |
±(1.2%rdg + 8d) |
*Note: For resistance readings above 1MΩ, series and parallel impedances may affect readings (especially at 1kHz). This effect is often noticed on decade resistance boxes where the AC measured value can vary from the DC calibrated value. Use fixed value low inductance resistors (film or equivalent) for high resistance calibration or certification.
Note: In the 20Ω range, effective readings must be over 20 counts.TD> |
| |
| Test Frequency (accuracy) |
122.88Hz (±4Hz) and 1kHz (±4Hz) |
| Display |
Dual 4 ½ digit backlit LCD |
| Overload indication: |
“OL” |
| Low battery indication |
battery image |
| Measurement rate |
One time per second |
| Auto-power off |
After 10 minutes of inactivity |
| Operating environment |
32oF to 122oF (0oC to 50oC), < 80% RH |
| Storage environment |
14oF to 140oF (-20oC to 60oC), < 80% RH, battery removed |
| Power |
9V battery or optional external 12V-15V @ 50mA (approx.) |
| Fuse |
0.1A/250V fast blow |
| Dimensions |
7.56x3.6x2.1” (19.2x9.1x5.25cm) |
| Weight |
12.9oz (365gm) |
