 ENGINEER 마이크로 모렉스핀 압착기 PA-09

 32~20AWG 압착 가능


판매가격 99,000(VAT포함)
모델명 PA-09
제조원
원산지 Japan
재고 판매중
구매수량 EA

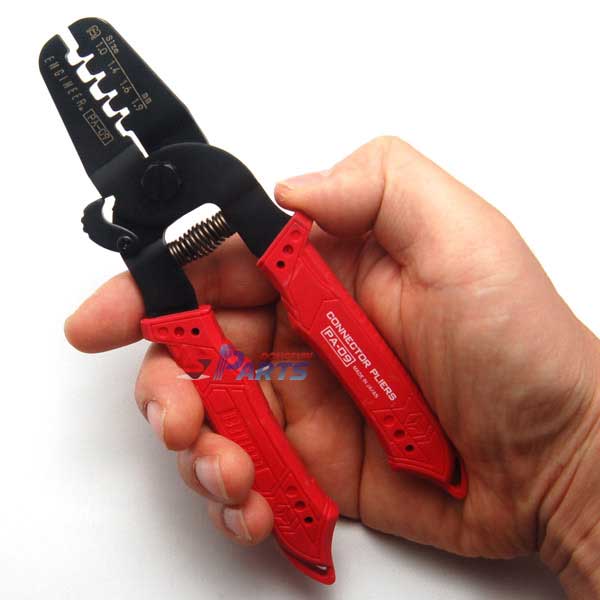

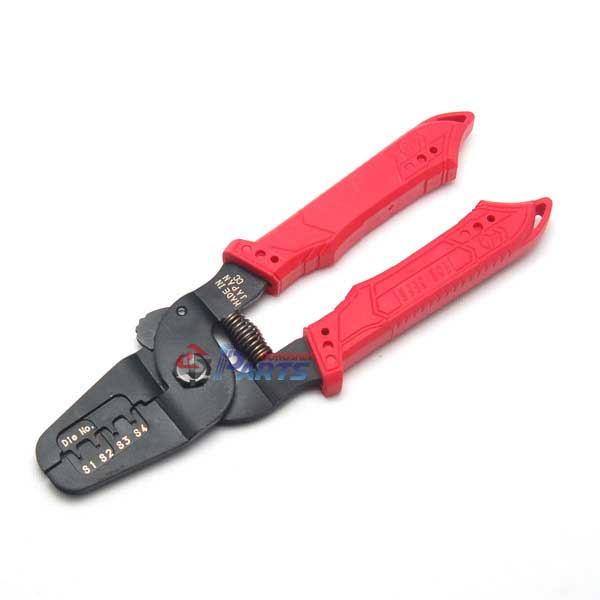

* 제품명 : ENGINEER 마이크로 모렉스핀(Micro Connector) 압착기 PA-09

* 제품특징
- 초소형 모렉스핀 50058 이상 압착 가능(32awg~20awg).
- 경량, 컴팩트 바디에 손에 피트하는 쿠션 그립부착.
- 연속 작업해도 지치지 않는 스프링 첨부.

엔지니어 세라믹드라이버 압착기 사용가능 핀


* 제품사양

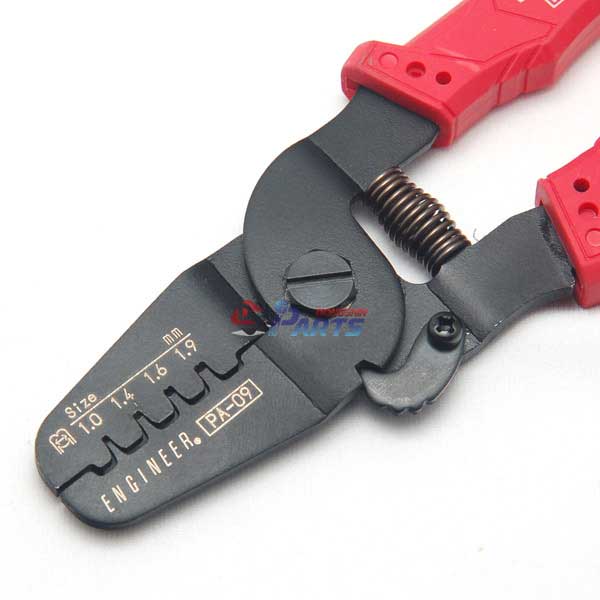

Model Dies
W(mm)
Dies
H(mm)
Dies
T(mm)
Wires adaptable (Ref.)
mmφ mm2 AWG (wires)
PA-09 1.0 0.50 1.7 thick 0.20~0.32 0.032~0.08 #32 to 28
1.4 0.55 0.32~0.51 0.08~0.2 #28 to 24
1.6 0.8 2.0 thick 0.51~0.64 0.2~0.33 #24 to 22
1.9 0.9 0.51~0.81 0.2~0.52 #24 to 20


엔지니어 세라믹드라이버 압착기 사용가능 핀


※ PA-09: Capable of crimping 1.25 to 2.5mm pitch connector pin (narrow-pitch)

●D-Sub connector contact can be also crimped.
●Original Set-pin prevents the joint from being loose and offers you easy maintenance.
●With locking latch and coiled spring
●Pliers made of S55C
●135g compact body for fatigue-free work

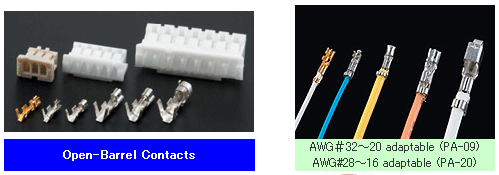

PA-09 압착 가능 핀

  Dies No. = 1.0   Dies No. = 1.9
  Dies No. = 1.4   Dies No. = 2.0
  Dies No. = 1.6   Dies No. = 2.3

"X" = Crimping impossible.

"Molex" Brand Terminals "ENGINEER"
CRIMPING
PLIERS
RECOMMENDED
Crimping Dies Nos.
Code No. Series Conductor (AWG) Sheath (AWG)
32 28 24 22 20 18 32 28 24 22 20 18
50058-8100 PicoBlade PA-09   1.0           1.0
50079-8100 PicoBlade PA-09   1.0           1.0
50212-8100 Micro-Latch PA-09   1.0 1.0 1.0       1.4 1.4 1.4
50011-8100 MicroBlade PA-09   1.0 1.0 1.0       1.0 1.0 1.0
50351-8100 Mini-Lock PA-09/PA-20   1.6 1.6 1.6       1.9 1.9 1.9
50752-8100 Mini-Lock PA-09/PA-20   1.6 1.6 1.6 1.6     1.9 1.9 1.9 1.9
5263PBTL Mini-SPOx PA-09/PA-20   1.6 1.6 1.6 1.6     1.6 1.6 1.6 1.6
5159TL KK PA-09/PA-20   1.6 1.6 1.6       1.6 1.6 1.6
5159PBTL KK PA-09/PA-20   1.6 1.6 1.6       1.6 1.6 1.6
50802-8100 Mini-Latch PA-09/PA-20   1.6 1.6 1.6       1.6 1.6 1.6
50802-9101 Mini-Latch PA-09/PA-20   1.6 1.6 1.6       1.6 1.6 1.6
5479PBTL    - PA-09   1.4 1.4 1.4       1.6 1.6 1.6
43030-0007 Micro-Fit PA-09/PA-20     1.6 1.6         1.6 1.6
43030-0010 Micro-Fit PA-09/PA-20   1.6 1.6 1.6       1.6 1.6 1.6
43031-0007 Micro-Fit PA-09/PA-20     1.6 1.6         1.6 1.6
43031-0010 Micro-Fit PA-09/PA-20   1.6 1.6 1.6       1.6 1.6 1.6
50217-8100   PA-20     1.9 1.9 1.9       2.3 2.3 2.3
50217-9101   PA-20     1.9 1.9 1.9       2.3 2.3 2.3
5194TL SPOx PA-20   1.9 1.9 1.9 1.9 1.9   2.3 2.3 2.3 2.3 2.3
5194PBTL SPOx PA-20   1.9 1.9 1.9 1.9 1.9   2.3 2.3 2.3 2.3 2.3
5225TL   PA-20   1.9 1.9 1.9 1.9 1.9   2.3 2.3 2.3 2.3 2.3
5556TL Mini-Fit PA-20         1.6           2.0
5556PBTL Mini-Fit PA-20         1.6           2.0
5556T2L Mini-Fit PA-09
PA-20
  1.6 1.6 1.6       1.9 1.9 1.9
5556PBT2L Mini-Fit PA-09
PA-20
  1.6 1.6 1.6       1.9 1.9 1.9
5558TL Mini-Fit PA-20         1.6           2.0
5558PBTL Mini-Fit PA-20         1.6           2.0
50597-8100   x       x           x
1190TL 1190 x     x           x
1189ATL 1189 PA-09/PA-20         1.9           1.9
1381ATL 1381       x x x       x x x

"J.S.T." Brand Terminals "ENGINEER"
CRIMPING
PLIERS RECOMMENDED
Crimping Dies Nos.
Code No. Series Conductor (AWG) Sheath (AWG)
32 28 24 22 20 18 32 28 24 22 20 18
SSH-003T-P0.2-H SH PA-09 x x         x x
SSH-003GA-P0.2 SHD PA-09

1.0

1.0

        1.0 1.0
SSHL-003T-P0.2 SHL PA-09 1.0

1.0

        1.0 1.0
SSHL-003GA1-P0.2 SHLD PA-09 1.0 1.0         1.0 1.0
SSHL-002T-P0.2 GH PA-09   1.0           1.0
SZN-002T-P0.7K SZN PA-09   1.0           1.4
SZN-003T-P0.7K SZN PA-09   1.0           1.4
SZE-002T-P0.3 ZE PA-09/PA-20     1.6

1.9


SZH-002T-P0.5 ZH PA-09   1.0           1.0
SZH-003T-P0.5 ZH・ZM PA-09 1.0 1.0         1.0 1.0
SWPR-001T-P025 JWPF PA-09/PA-20     1.6           1.6
SPHD-001T-P0.5 PA・PHD PA-09/PA-20     1.6 1.6         1.9 1.9
SPHD-002T-P0.5 PA・PHD PA-09/PA-20   1.6 1.6         1.6 1.9
SPA-001T-P0.5 PA PA-09/PA-20     1.6 1.6         1.9 1.9
SPAL-001T-P0.5 PAL PA-09/PA-20     1.6           1.6
SPAL-002T-P0.5 PAL PA-09/PA-20   1.6           1.6
SPH-001T-P0.5L PAD PA-09/PA-20     1.6 1.6         1.9 1.9
SPH-002T-P0.5L PH・PAD・KRW PA-09/PA-20   1.6 1.6         1.9 1.9
SPND-001T-C0.5 PND・PNI PA-09/PA-20     1.6 1.9         1.6 1.9
SPND-002T-C0.5 PND・PNI PA-09/PA-20   1.6 1.6         1.9 1.9
SPH-002T-P0.5S PH PA-09   1.0 1.0         1.4 1.4
SPH-004T-P0.5S PH PA-09 x 1.0         x 1.0
SPUD-001T-P0.5 PUD PA-09/PA-20     1.6 1.6         1.6 1.6
SAN-002T-0.8A SAN PA-09/PA-20   1.6 1.6         1.6 1.6
SAN-002T-0.8K SAN PA-09/PA-20   1.6 1.6         1.6 1.6
SEH-001T-P0.6 EH PA-09/PA-20   1.4 1.6 1.6       1.9 1.9 1.9
SEH-001T-P0.6L EH PA-09/PA-20     1.6           1.9
SJ2F-002GF-P1.0 JFA PA-09/PA-20   1.6           1.9
SJ2F-01GF-P1.0 JFA PA-09/PA-20     1.6           1.9
SJ2F-21GF-P1.0 JFA PA-09/PA-20   1.6           1.9
SHF-001T-0.8BS NH・SM PA-09/PA-20   1.6 1.6 1.6       1.9 1.9 1.9
SBN-001T-0.1 SBN PA-09/PA-20   1.6 1.6         1.9 1.9
SCN-001T-P1.0 SCN PA-09/PA-20     1.6           1.9
SCN-001T-1.0K SCN PA-09/PA-20     1.6           1.9
SXA-001T-P0.6 XA・XM・XAD PA-09/PA-20   1.6           1.9
SXAM-001T-P0.6 XA・XAD PA-09/PA-20   1.6           1.9
SXA-01T-P0.6 XA・XM・XAD PA-09/PA-20     1.6           1.9
SXAM-01T-P0.6 XA・XM・XAD PA-09/PA-20     1.6           1.9
SXA-001T-P0.6L XA・XM・XAD PA-09/PA-20     1.6           1.9
SXH-001T-P0.6N XH PA-09/PA-20     1.6           1.9
SXH-001T-P0.6 XH PA-09/PA-20   1.4 1.6 1.6       1.9 1.9 1.9
RA-SC1290 RA PA-09/PA-20     1.6           1.9
RF-SC2210 RE PA-09/PA-20     1.6           1.9
RF-SC2290 RE PA-09/PA-20     1.6           1.9
SBHS-002T-P0.5A BD・BHS PA-09/PA-20   1.6           1.9
SBHSM-002T-P0.5 BHS・BHT PA-09/PA-20   1.6           1.9
SSF-21T-P1.4 BL・HL・
MWP・SL
PA-20       2.0 2.0 2.0       2.3 2.0 2.0
SDN-21T-P1.5 SDN         x x x       x x x
SVH-21T-P1.1 VH・VB・NV PA-20       2.0 2.0 2.0       2.3 2.3 2.3
SVH-41T-P1.1 VH・NV           x           x
SVU-21T-P0.6 VU PA-20       2.0 2.0         2.3 2.3
SBH-001T-P0.5 BH・BHM     x           x
SVF-01T-1.5N SV PA-20     1.9           2.3
SYM-01T-P0.7 XL PA-20     1.9           2.3
SXF-01T-P0.7 XL PA-20     1.9           2.3
SYM-41T-P0.7 XL
SXF-41T-P0.7 XL
SLC-21T-2.0 LC         x           x
SBHT-002T-P0.5 BHT PA-09/PA-20   1.6           1.9
SVM-42T-P2.0 VL         x           x
SVF-42T-P2.0 VL         x           x
SVM-61T-P2.0 VL         x           x
SVF-61T-P2.0 VL         x           x
SYF-01T-P0.5A YL・YLH・VYH PA-20     1.9           2.3
SYF-41T-P0.5A YL・YLH・VYH           x           x
SVYF-41T-P0.5A-13.5 VYH           x           x
SYF-61T-P0.5A VYH             x           x
SVYF-61T-P0.5A VYH             x           x
SVT-41T-P1.1 NVA           x           x
SVA-41T-P1.1 VA           x           x
SVF-01T-2.36N LV PA-20     1.9           2.3
SVF-01T-2.36LN LV       x x x       x x x
SCZH-002T-P0.5 RWZ・RIZ・CZ
CZW・OTZ
PA-09   1.0           1.0
SMM-003T-P0.5 ZM PA-09   1.0           1.0
SWPT-001T-P025 JWPF PA-09/PA-20     1.6           1.6
SMR-001T-P0.6 HM PA-09/PA-20     1.6           1.9
SJ2M-002GF-M1.0N JFA PA-09/PA-20   1.6           1.9
SJ2M-01GF-M1.0N JFA PA-09/PA-20     1.6           1.9
SJ2M-21GF-M1.0N JFA PA-09/PA-20   1.6           1.9
SJ2M-01GF-M1.0S JFA PA-09/PA-20     1.6           1.9
SYM-001T-P0.6 SM・RCY PA-09/PA-20   1.6 1.6 1.6       1.9 1.9 1.9
SYF-001T-P0.6 RCY PA-09/PA-20   1.6 1.6 1.6       1.9 1.9 1.9
SXM-001T-P0.6 XM PA-09/PA-20   1.6           1.9
SXM-01T-P0.6 XM・XMA PA-09/PA-20     1.6           1.9
SSM-21T-P1.4 SL・HL・MWP PA-20       2.0 2.0 2.0       2.3 2.3 2.3
SSF-01T-P1.4 SL・HL・MWP PA-20     1.9           2.3
SSM-01T-P1.4 SL・MWP PA-20     1.9           2.3
SBHM-001T-P0.5 BHM     x x x       x x x
SLM-01T-P1.3E EL PA-20     2.0 2.0 2.0       2.3 2.3 2.3
SLF-01T-P1.3E EL PA-20     2.0 2.0 2.0       2.3 2.3 2.3
SLM-41T-P1.3E EL           x           x
SLF-41T-P1.3E EL           x           x
SYM-01T-P0.5A YL・YLN PA-20     1.9           2.3
SYM-41T-P0.50A YL・YLN           x           x
SZM-01T-P0.7 ZL PA-20     1.9           2.3
SZF-01T-P0.7 ZL PA-20     1.9           2.3
SZF-41T-P0.7 ZL             x           x

"AMP" Brand Terminals "ENGINEER"
CRIMPING
PLIERS
RECOMMENDED
Crimping Dies Nos.
Code No. Series Conductor (AWG) Sheath (AWG)
32 28 24 22 20 18 32 28 24 22 20 18
175288-2 Dynamic PA-20         2.3           2.3
175289-2 Dynamic PA-20         2.3           2.3
175288-5 Dynamic PA-20         2.3           2.3
175289-5 Dynamic PA-20         2.3           2.3
926896-1 MATE-N-LOK PA-20         2.0           2.3
926895-1 MATE-N-LOK PA-20         2.0           2.3
170363-1 Universal
MATE-N-LOK
PA-09/PA-20     1.6           1.9
170365-1 Universal
MATE-N-LOK
PA-09/PA-20     1.6           1.9
"JAE" Brand Terminals   "ENGINEER"
CRIMPING
PLIERS
RECOMMENDED
Crimping Dies Nos.
Code No. Series Conductor (AWG) Sheath (AWG)
32 28 24 22 20 18 32 28 24 22 20 18
IL-AG5-C1-5000 IL-AG5/7/9   PA-20         2.0           2.3
IL-AG5-PC1-5000 IL-AG5/7/9 PA-20         2.0           2.3
M34S75C4F1 MX34 PA-20         2.0           2.0
M34S75C4F2 MX34 PA-20         2.0

2.3


IL-S-C2-SC-0001 IL-Z PA-09/PA-20     1.6           1.6
IL-G-C2-SC-0001 IL-G PA-09/PA-20   1.4 1.6 1.6       1.4 1.6 1.6

"HRS" Brand Terminals "ENGINEER"
CRIMPING PLIERS
RECOMMENDED
Crimping Dies Nos.
Code No. Series Conductor (AWG) Sheath (AWG)
32 28 24 22 20 18 32 28 24 22 20 18
DF11-2428SC DF11 PA-09/PA-20     1.6           1.6
DF3-2428SC DF3 PA-09/PA-20     1.6           1.6



• <절대 주의> 모든 상품은 제품 불량이 있을 수도 있습니다. 따라서 어떠한 경우에도 상품가격 이상의 보상은 없습니다.
• 모든 상품에 납땜 등, 상품에 변형을 줄 수 있는 모든 작업 후에는. 불량이 발생하여도 보상은 없습니다.
• 상기 제품의 상품 관련 데이타는 참고 사항이므로 제품에 대한 테스트 및 정확한 자료 확인 후 사용하시기 바랍니다.
• 관련 데이타에 대한 내용에 대해 발생하는 문제에 대해서는 법적인 책임을 지지 않습니다.
