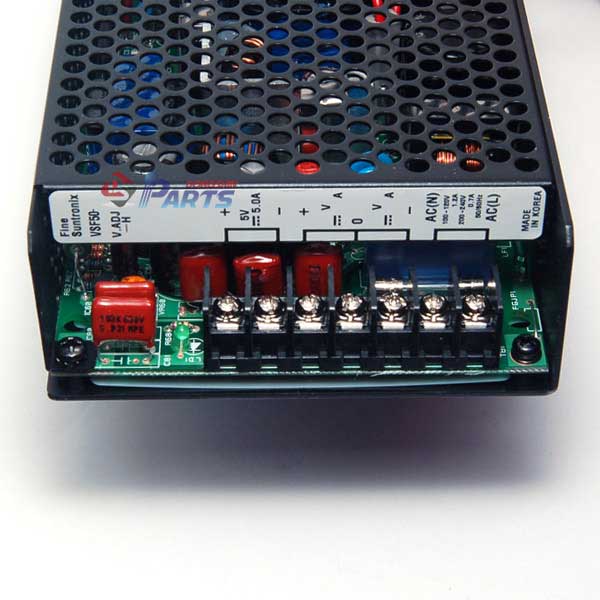

 È­ÀνãÆ®·Î´Ð½º(Fine Suntronix) VSF50-DD SMPS

 Ãâ·Â:Triple, DC1(5V, 5A), DC2(12V, 1.8A), DC2(-12V, 0.3A) ÀÔ·Â:AC85~132V / 170~264V or DC240~370V


ÆǸŰ¡°Ý 77,500 ¿ø(VATÆ÷ÇÔ)
¸ðµ¨¸í VSF50-DD
Á¦Á¶¿ø ¿À¸®¿£Æ®ÀüÀÚ [ºê·£µå ¹Ù·Î°¡±â]
Àç°í ÆǸÅÁß
±¸¸Å¼ö·® EA


¡Ø Detail Specification

INPUT
VOLTAGE (V)
AC100-120V / 200-240V (AC85~132V / 170~264V or DC240~370V), 50/60Hz (47~440Hz or DC)
CURRENT
100V ~1.2A, 200V ~0.7A
FREQUENCY
EFFICIENCY
77% typ
INRUSH CURRENT
20A typ(AC IN 110V, Io=100%), 40A typ(AC IN 220V, Io=100%) at cold start.
OUTPUT1
VOLTAGE (V)
5
CURRENT (A)
0.5~5.0
LINE REGULATION (mV)
50 Max
LOAD REGULATION (mV)
100 Max
RIPPLE (mVP-P)
50 Max
RIPPLE & NOISE (mVP-P)
100 Max
TEMPERATURE DRIFT,0~+50¡É(mV)
75 Max
TURN ON TIME (mS)
1000 Max (AC IN 110V/220v, Io=100%)
HOLD UP TIME (mS)
17 typ (AC IN 110V/220V, Io=100%)
PROTECTION CIRCUIT
OVER CURRENT PROTECTION
Works at over 110% of rating and recovers automatically. (CH2,3 Io=100%)
OVER VOLTAGE PROTECTION
Works at 115~140% of rating
ELECTRICALLY ISOLATED
INPUT-OUTPUT
AC 3,000V 1 minute current 20mA, DC 500V 100§Û (At room temperature & Humidity)
INPUT-CASE.FG
AC 2,000V 1 minute current 20mA, DC 500V 100§Û (At room temperature & Humidity)
OUTPUT-CASE
AC 500V 1 minute current 100mA, DC 500V 100§Û (At room temperature & Humidity)
ENVIRONMENT
OPERATING TEMP AND HUMID
-10~+50¡É , 20~90% RH(Non condensing)
STORAGE TEMP AND HUMID
-20~+75¡É , 20~90% RH(Non condensing)
VIBRATION
10~55Hz at 1G, 3 minutes period, 30 minutes along X, Y and Z axis
IMPACT
10G for 20ms once on each X, Y and Z axis
SAFETY
SAFETY REGULATION
CE
LINE CONDUCTED RF VOLTAGE
OUTPUT2
VOLTAGE (V)
12
CURRENT (A)
0~1.8
LINE REGULATION (mV)
LOAD REGULATION (mV)
RIPPLE (mVP-P)
120 Max
RIPPLE & NOISE (mVP-P)
170 Max
TEMPERATURE DRIFT,0~+50¡É(mV)
180 Max
TURN ON TIME (mS)
1000 Max (AC IN 110V/220v, Io=100%)
HOLD UP TIME (mS)
OUTPUT3
VOLTAGE (V)
-12
CURRENT (A)
0~0.3
LINE REGULATION (mV)
LOAD REGULATION (mV)
RIPPLE (mVP-P)
120 Max
RIPPLE & NOISE (mVP-P)
170 Max
TEMPERATURE DRIFT,0~+50¡É(mV)
180 Max
TURN ON TIME (mS)
1000 Max (AC IN 110V/220v, Io=
HOLD UP TIME (mS)
