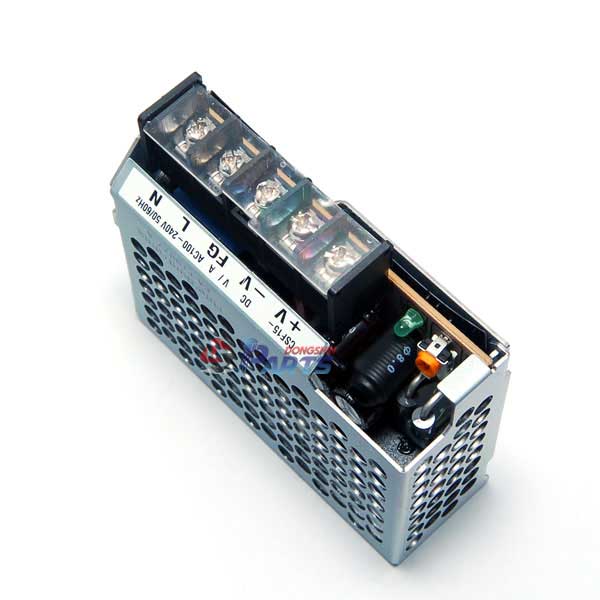

 È­ÀνãÆ®·Î´Ð½º(Fine Suntronix) CSF15-05 SMPS

 Ãâ·Â:Single, DC 5V, 3.0A ÀÔ·Â:AC85~264V or DC120~370V


ÆǸŰ¡°Ý 20,800 ¿ø(VATÆ÷ÇÔ)
½ÃÁß°¡ 22,000 ¿ø (5% ÇÒÀÎ)
¸ðµ¨¸í CSF15-05
Á¦Á¶¿ø ¿À¸®¿£Æ®ÀüÀÚ [ºê·£µå ¹Ù·Î°¡±â]
Àç°í ÆǸÅÁß
±¸¸Å¼ö·® EA


¡Ø Detail Specification

INPUT
VOLTAGE (V)
AC100-240V(AC85~264V or DC120~370V),50/60Hz (47~440Hz or DC) , Universal input
CURRENT
110V ~0.4A,220V ~0.2A
FREQUENCY
EFFICIENCY
75 % typ (AC IN 220V)
INRUSH CURRENT
20A typ(AC IN 110V,Io=100%), 40A typ(AC IN 220V, Io=100%) at cold start.
OUTPUT1
VOLTAGE (V)
5
CURRENT (A)
3.0
LINE REGULATION (mV)
25 Max
LOAD REGULATION (mV)
50 Max
RIPPLE (mVP-P)
80 Max
RIPPLE & NOISE (mVP-P)
120 Max
TEMPERATURE DRIFT,0~+50¡É(mV)
75 Max
TURN ON TIME (mS)
200 Max (AC IN 100V, Io=100%)
HOLD UP TIME (mS)
17 typ (AC IN 100V, Io=100%)
PROTECTION CIRCUIT
OVER CURRENT PROTECTION
Works at over 105% of rating and recovers automatically
OVER VOLTAGE PROTECTION
ELECTRICALLY ISOLATED
INPUT-OUTPUT
AC 3,000V 1 minute current 20mA, DC 500V 100M§Ù(At room temperature & Humidity)
INPUT-CASE.FG
AC 2,000V 1 minute current 20mA, DC 500V 100M§Ù(At room temperature & Humidity)
OUTPUT-CASE
AC 500V 1 minute current 100mA, DC 500V 100M§Ù(At room temperature & Humidity)
ENVIRONMENT
OPERATING TEMP AND HUMID
-10~50¡É, 20~90% RH(Non Condensing)
STORAGE TEMP AND HUMID
-20~ +75¡É, 20~90% RH(Non Condensing)
VIBRATION
10~55Hz at 1G, 3 minutes period, 30 minutes along X,Y and Z axis
IMPACT
10G for 20ms, once on each X, Y and Z axis
SAFETY
SAFETY REGULATION
Complied with UL 60950, EN60950
LINE CONDUCTED RF VOLTAGE
Complied with FCC Part 15, VCCI-A, CISPR22-A, EN55022-A
OUTPUT2
VOLTAGE (V)
CURRENT (A)
LINE REGULATION (mV)
LOAD REGULATION (mV)
RIPPLE (mVP-P)
RIPPLE & NOISE (mVP-P)
TEMPERATURE DRIFT,0~+50¡É(mV)
TURN ON TIME (mS)
HOLD UP TIME (mS)
OUTPUT3
VOLTAGE (V)
CURRENT (A)
LINE REGULATION (mV)
LOAD REGULATION (mV)
RIPPLE (mVP-P)
RIPPLE & NOISE (mVP-P)
TEMPERATURE DRIFT,0~+50¡É(mV)
TURN ON TIME (mS)
HOLD UP TIME (mS)
