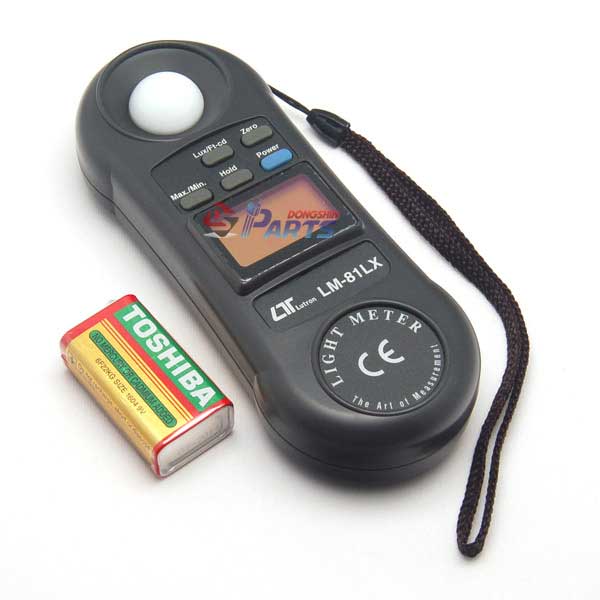

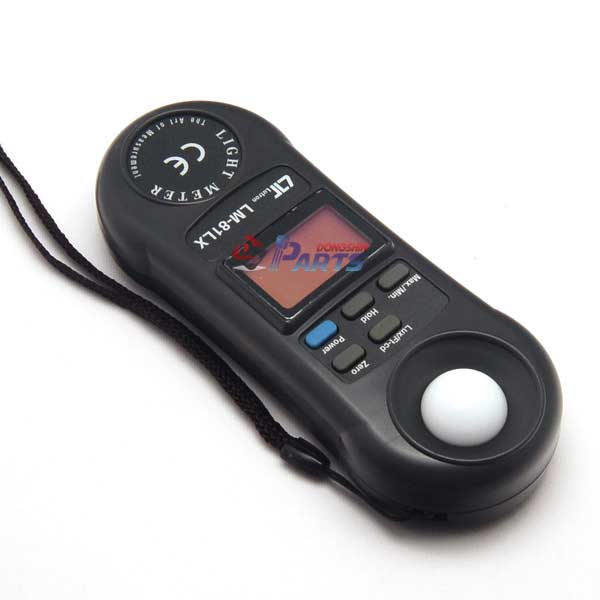

 [LUTRON] Á¶µµ°è LM-81LX

 0 ~ 20,000Lux, auto Range


ÆǸŰ¡°Ý 76,000 ¿ø(VATÆ÷ÇÔ)
¸ðµ¨¸í LM-81LX
Á¦Á¶¿ø Any Vendor [ºê·£µå ¹Ù·Î°¡±â]
¿ø»êÁö TAIWAN
Àç°í ÆǸÅÁß
±¸¸Å¼ö·® EA


LIGHT METER
Model : LM-81LX

FEATURES
* Professional Light meter.
* Tiny bone shape with lightweight and small size case design are suitable for handling with one hand.
* Wristlet design provides extra protection to the instrument especially for user one hand operation.
* Exclusive photo diode and color correction filter light sensor, spectrum meets C.I.E. photopic.
* Build in microprocessor circuit assures excellent performance and accuracy.
* Concise and compact buttons arrangement, easy operation.
* Memorize the maximum and minimum value with recall.
* Lux/Feet-candle selectable by pressing button on the front panel.
* Zero button design makes light meter calibration.
* Hold function to freeze the current reading value.

GENERAL SPECIFICATIONS
Display LCD display, 8 mm digit height.
Measurement Lux, Foot-candle.
Operating Humidity Max. 80% RH.
Operating Temperature 0 to 50¡Æ C (32 to 122¡Æ F)
Over Input Display Indication of "- - - - "
Power Supply 006P DC 9V battery (Heavy duty type)
Power Consumption Approx. DC 6.2 mA
Weight 160g (battery included)
Dimension HWD 156x60x33 mm (6.14x2.36x1.29 inch).
Standard Accessory Instruction Manual
Optional Accessories Carrying case ( CA-52A )


ELECTRICAL SPECIFICATION ( 23 ¡¾ 5¡É )
Measurement Range Resolution Accuracy
Lux 0 to 20,000 Lux 1 Lux ¡¾ 5% rdg ¡¾ 8 dgt
Foot-candle 0 to 2,000 Fc 1 Ft-cd ¡¾ 5% rdg ¡¾ 8 dgt
