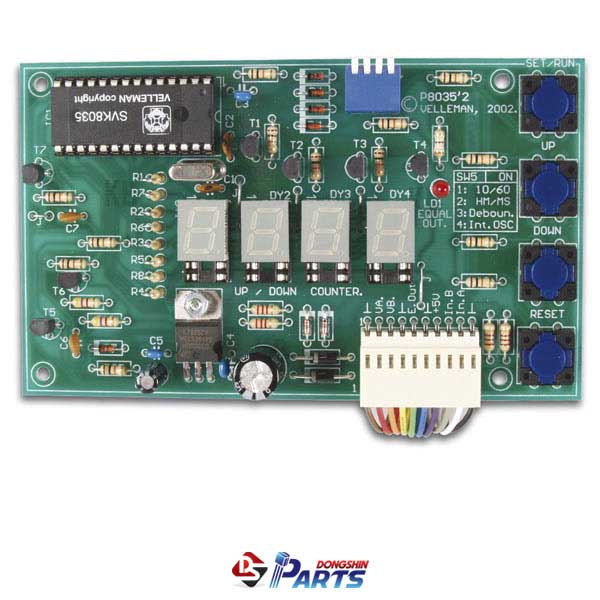

Features

 • very practical for counting people or parts, scorekeeping, ...
 • counts up or down
 • count input through on-board push buttons or by external pulses
 • display modes: normal or time (hh:mm and mm:ss)
 • an internal oscillator allows time measurement
 • a memory function constantly compares the current value with a preset value and
   activates an output for as long as both are equal
 • self diagnostic at power up
 • comes with easy board-to-wire connector (20cm wire)
 • optional bezel enclosure: B8035


Specifications

 • counter input voltage: 3...12Vdc (normal dry contact also possible)
 • EQUAL output: 5Vdc / max. 50mA
 • max. counting speed: 200 / sec. (2 / sec. with long debounce delay)
 • max. count: 4 digits (9999 / 23h59m / 59m59s)
 • power supply: 9 - 12Vdc or transformer 2 x 9Vac / 300mA, type : 209005
 • power consumption: 150mA max.
 • dimensions: 125 x 75mm / 4.9 x 3"
