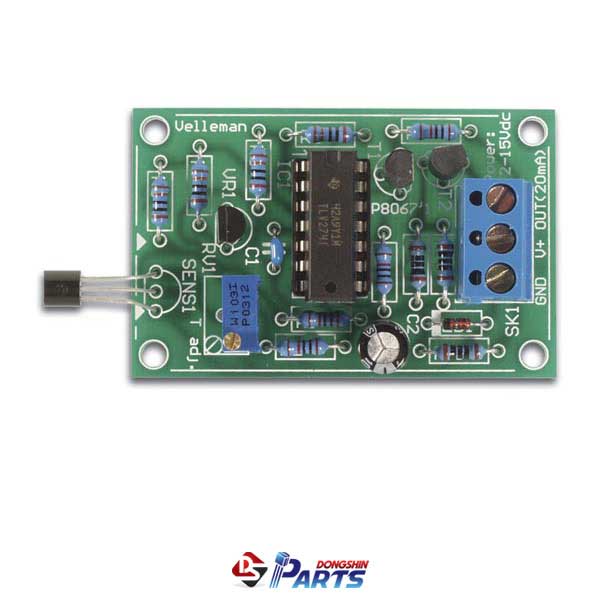

 Universal Temperature Sensor K8067


ÆǸŰ¡°Ý 27,000 ¿ø(VATÆ÷ÇÔ)
¸ðµ¨¸í K8067
Á¦Á¶¿ø Velleman [ºê·£µå ¹Ù·Î°¡±â]
Àç°í ÆǸÅÁß
±¸¸Å¼ö·® EA


Applications : measure indoor and outdoor temperatures, control heating and/or cooling of rooms, equipment, etc...
Monitor temperatures in processes, put a temperature readout on your website, check your pools temperature, ...


 Specifications

 • range: -20¡Æ ~ +70¡ÆC
 • output: 0 ~ 20mA current loop
 • output voltage compliance: 10V
 • accuracy: 2¡Æ full range
 • one single adjustment
 • 3-wire system: GND, +V and OUT
 • power supply: 12VDC for 0 ~ 5V OUT / 15VDC for 0 ~ 10V OUT
 • current consumption: 30mA max.
 • dimensions: 55 x 35 x 15mm / 2.2 x 1.4 x 0.6"


Extras

 • * optional : BIG digital clock K8089
