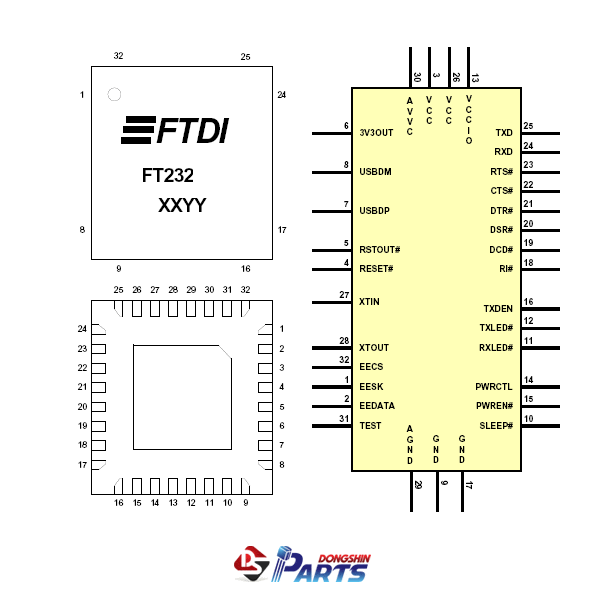

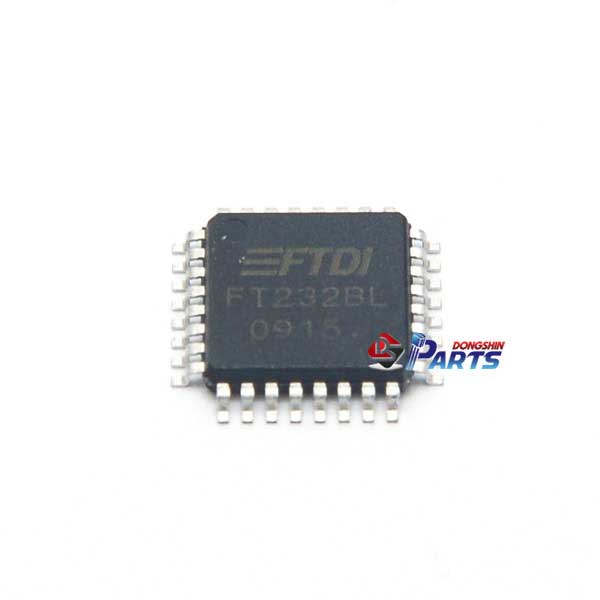

 FT232BL

 USB UART ( USB - Serial) I.C.


ÆǸŰ¡°Ý 6,500 ¿ø(VATÆ÷ÇÔ)
¸ðµ¨¸í FT232BL
Á¦Á¶¿ø Any Vendor [ºê·£µå ¹Ù·Î°¡±â]
Àç°í ÆǸÅÁß
±¸¸Å¼ö·® EA



HARDWARE FEATURES

• Single Chip USB Asynchronous Serial Data Transfer
• Full Handshaking & Modem Interface Signals
• UART I/F Supports 7 / 8 Bit Data, 1 / 2 Stop Bits and Odd/Even/Mark/Space/No Parity
• Data rate 300 => 3M Baud (TTL)
• Data rate 300 => 1M Baud (RS232)
• Data rate 300 => 3M Baud (RS422/RS485)
• 384 Byte Receive Buffer / 128 Byte Transmit Buffer for high data throughput
• Adjustable RX buffer timeout
• Fully Assisted Hardware or X-On / X-Off Handshaking
• In-built support for event characters and line break condition
• Auto Transmit Buffer control for RS485
• Support for USB Suspend / Resume through SLEEP# and RI# pins
• Support for high power USB Bus powered devices through PWREN# pin
• Integrated level converter on UART and control signals for interfacing to 5V and 3.3V logic
• Integrated 3.3V regulator for USB IO
• Integrated Power-On-Reset circuit
• Integrated 6MHz – 48Mhz clock multiplier PLL
• USB Bulk or Isochronous data transfer modes
• 4.35V to 5.25V single supply operation
• UHCI / OHCI / EHCI host controller compatible
• USB 1.1 and USB 2.0 compatible
• USB VID, PID, Serial Number and Product Description strings in external EEPROM
• EEPROM programmable on-board via USB
• Compact 5 x 5 mm Lead free RoHS compliant QFN32 package.
