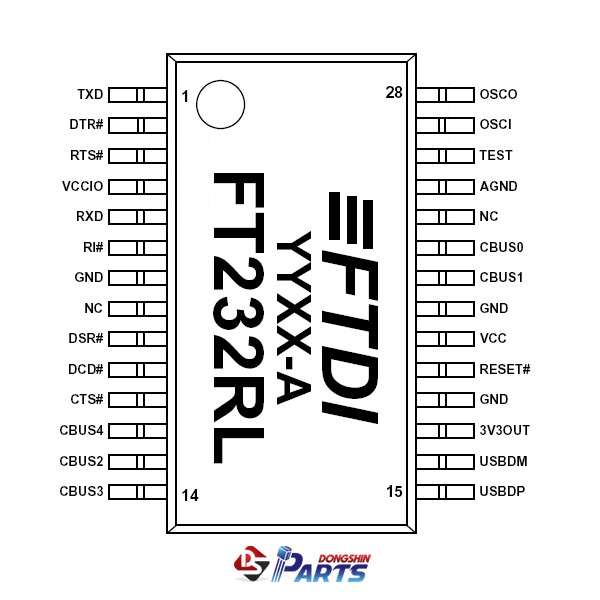

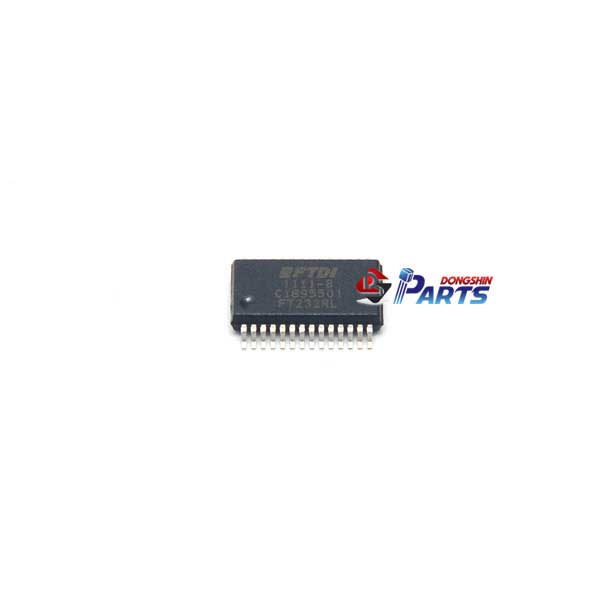

 FT232RL

 USB UART I.C.


ÆǸŰ¡°Ý 8,800 ¿ø(VATÆ÷ÇÔ)
¸ðµ¨¸í FT232RL
Á¦Á¶¿ø Any Vendor [ºê·£µå ¹Ù·Î°¡±â]
Àç°í ÆǸÅÁß
±¸¸Å¼ö·® EA

<STRONG>Hardware Features<BR><BR></STRONG>&#8226; Single chip USB to asynchronous serial data transfer interface.<BR>&#8226; Entire USB protocol handled on the chip - No USB-specific firmware programming required.<BR>&#8226; UART interface support for 7 or 8 data bits, 1 or 2 stop bits and odd / even / mark / space / no parity.<BR>&#8226; Fully assisted hardware or X-On / X-Off software handshaking.<BR>&#8226; Data transfer rates from 300 baud to 3 Megabaud (RS422 / RS485 and at TTL levels) and 300 baud to 1 Megabaud (RS232).<BR>&#8226; 256 byte receive buffer and 128 byte transmit buffer utilising buffer smoothing technology to allow for high data throughput.<BR>&#8226; FTDI¡¯s royalty-free VCP and D2XX drivers eliminate the requirement for USB driver development in most cases.<BR>&#8226; In-built support for event characters and line break condition.<BR>&#8226; New USB FTDIChip-ID¢â feature.<BR>&#8226; New configurable CBUS I/O pins.<BR>&#8226; Auto transmit buffer control for RS485 applications.<BR>&#8226; Transmit and receive LED drive signals.<BR>&#8226; New 48MHz, 24MHz,12MHz, and 6MHz clock output signal Options for driving external MCU or FPGA.<BR>&#8226; FIFO receive and transmit buffers for high data throughput.<BR>&#8226; Adjustable receive buffer timeout.<BR>&#8226; Synchronous and asynchronous bit bang mode interface options with RD# and WR# strobes.<BR>&#8226; New CBUS bit bang mode option.<BR>&#8226; Integrated 1024 Bit internal EEPROM for storing USB VID, PID, serial number and product description strings, and CBUS I/O configuration.<BR>&#8226; Device supplied preprogrammed with unique USB serial number.<BR>&#8226; Support for USB suspend and resume.<BR>&#8226; Support for bus powered, self powered, and high-power bus powered USB configurations.<BR>&#8226; Integrated 3.3V level converter for USB I/O .<BR>&#8226; Integrated level converter on UART and CBUS for interfacing to 5V - 1.8V Logic.<BR>&#8226; True 5V / 3.3V / 2.8V / 1.8V CMOS drive output and TTL input.<BR>&#8226; High I/O pin output drive option.<BR>&#8226; Integrated USB resistors.<BR>&#8226; Integrated power-on-reset circuit.<BR>&#8226; Fully integrated clock - no external crystal, oscillator, or resonator required.<BR>&#8226; Fully integrated AVCC supply filtering - No separate AVCC pin and no external R-C filter required.<BR>&#8226; UART signal inversion option.<BR>&#8226; USB bulk transfer mode.<BR>&#8226; 3.3V to 5.25V Single Supply Operation.<BR>&#8226; Low operating and USB suspend current.<BR>&#8226; Low USB bandwidth consumption.<BR>&#8226; UHCI / OHCI / EHCI host controller compatible<BR>&#8226; USB 2.0 Full Speed compatible.<BR>&#8226; -40¡ÆC to 85¡ÆC extended operating temperature range.<BR>&#8226; Available in compact Pb-free 28 Pin SSOP and QFN-32 packages (both RoHS compliant).


• <Àý´ë ÁÖÀÇ> ¸ðµç »óÇ°Àº Á¦Ç° ºÒ·®ÀÌ ÀÖÀ» ¼öµµ ÀÖ½À´Ï´Ù. µû¶ó¼­ ¾î¶°ÇÑ °æ¿ì¿¡µµ »óÇ°°¡°Ý ÀÌ»óÀÇ º¸»óÀº ¾ø½À´Ï´Ù.
• ¸ðµç »óÇ°¿¡ ³³¶« µî, »óÇ°¿¡ º¯ÇüÀ» ÁÙ ¼ö ÀÖ´Â ¸ðµç ÀÛ¾÷ ÈÄ¿¡´Â. ºÒ·®ÀÌ ¹ß»ýÇÏ¿©µµ º¸»óÀº ¾ø½À´Ï´Ù.
• »ó±â Á¦Ç°ÀÇ »óÇ° °ü·Ã µ¥ÀÌŸ´Â Âü°í »çÇ×À̹ǷΠÁ¦Ç°¿¡ ´ëÇÑ Å×½ºÆ® ¹× Á¤È®ÇÑ ÀÚ·á È®ÀÎ ÈÄ »ç¿ëÇϽñ⠹ٶø´Ï´Ù.
• °ü·Ã µ¥ÀÌŸ¿¡ ´ëÇÑ ³»¿ë¿¡ ´ëÇØ ¹ß»ýÇÏ´Â ¹®Á¦¿¡ ´ëÇؼ­´Â ¹ýÀûÀΠåÀÓÀ» ÁöÁö ¾Ê½À´Ï´Ù.
