 GL811E

 USB 2.0 to ATA / ATAPI Bridge Controller


판매가격 2,200 원(VAT포함)
모델명 GL811E
제조원 Any Vendor [브랜드 바로가기]
재고 판매중
구매수량 EA

GENERAL DESCRIPTION

The GL811E is a highly-compatible, low cost USB 2.0 to ATA / ATAPI bridge controller, which integrates
Genesys Logic own design high speed UTMI (USB 2.0 Transceiver Macrocell Interface) transceiver.
As a one-chip solution which complies with Universal Serial Bus specification rev. 2.0 and ATA / ATAPI-6
specification rev 1.0, the GL811E can support various kinds of ATA / ATAPI device. There are totally 4
endpoints in the GL811E controller, Control (0), Bulk In (1), Bulk Out (2), and Interrupt (3). By complies with
the USB Storage Class specification ver.1.0 (Bulk only protocol), the GL811E can support not only plug and
play but also Windows XP/ 2000/ ME default driver.
The GL811E uses 12MHz crystal and slew-rate controlled pads to reduce the EMI issue. With 48-pin LQFP
(9mmX9mm) package, the GL811E is the best cost/ performance solution to fit different situations in the USB
2.0 high speed storage class applications such as Hard Disk, CD-ROM, CD-R / RW and DVD-ROM.


FEATURES

· Complies with Universal Serial Bus specification rev. 2.0.
· Complies with ATA/ATAPI-6 specification rev 1.0.
· Complies with USB Storage Class specification ver.1.0. (Bulk only protocol)
· Operating system supported: Win XP / 2000 / Me / 98 / 98SE; Mac OS 9.X / X.
· Integrated USB 2.0 Transceiver Macrocell Interface (UTMI) transceiver and Serial Interface Engine (SIE).
· USB 2.0 certified (TestID=40380268)
· Supports 4 endpoints: Control (0) / Bulk Read (1) / Bulk Write (2) / Interrupt (3).
· 64 / 512 bytes Data Payload for full / high speed Bulk Endpoint.
· Supports 16-bit Multiword DMA mode and Ultra DMA mode interface (Ultra 33 / 66).
· Embedded 7.5 MIPS RISC CPU.
· ROM size: 4k words; RAM size: 128 bytes.
· Supports Power Down mode and USB suspend indicator.
· Supports USB 2.0 TEST mode features.
· Supports 2 GPIO (GPIO5 & 6) for programmable AP (only for 64 pin package).
· Supports device power control for power on/off when running suspend mode (only for 64 pin package).
· Supports 32 bit and 48 bit LBA hard disk.
· Provides LED indicator for Full Speed and High Speed (only for 64 pin package).
· 12 MHz external clock to provide better EMI.
· 3.3V power input; 5V tolerance pad for IDE interface.
· Supports Wakeup ability.

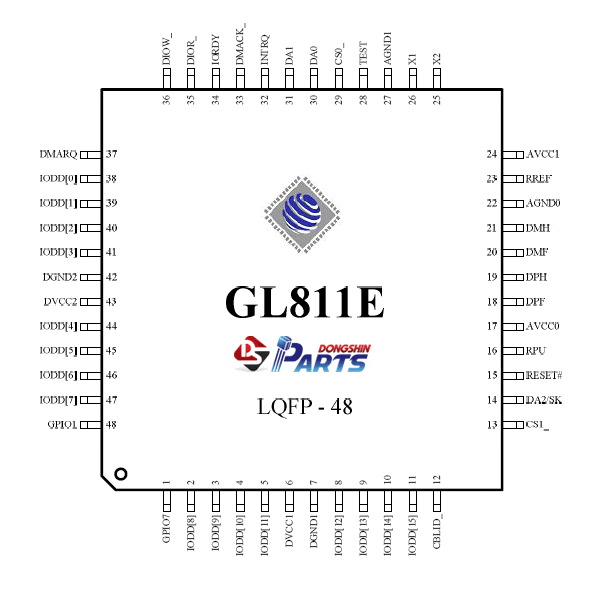

· Available in 48-pin LQFP and 64-pin LQFP package.
