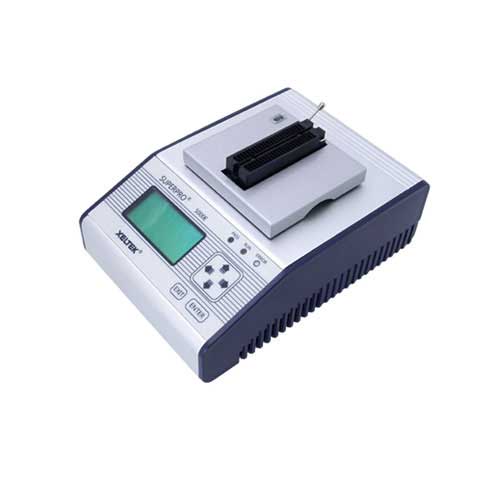

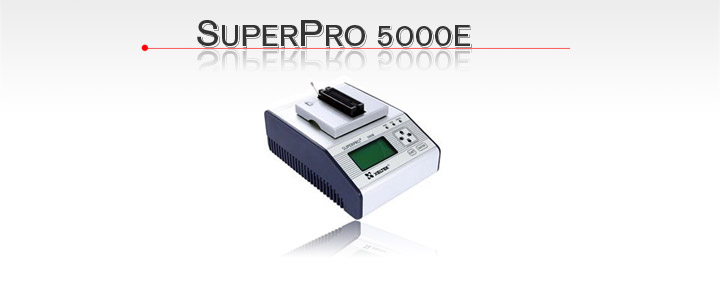

 [Xeltek] SuperPro 5000E


ÆǸŰ¡°Ý 1,760,000 ¿ø(VATÆ÷ÇÔ)
¸ðµ¨¸í SuperPro 5000E
Á¦Á¶¿ø
¿ø»êÁö China
Àç°í ÆǸÅÁß
±¸¸Å¼ö·® EA




 ¢º Highlights

* The largest device support in the industry: Supports 64,096 IC devices

   from 254 manufacturers and continuing

* Two programmers in one, a double value: PC mode for engineering and Stand-alone

   mode for production. The programmer operates in either PC hosted mode

   or stand-alone mode.

  o Under PC hosted mode, a PC controls the programmer via a high-speed

      USB connection to program a chip.

  o Under stand-alone mode, the user controls the programmer via

      20-characters, 4-line LCD display with 6-KEY keypad.

  o A CF (compact flash) card stores the project files.

* Ultra-Fast Programming Speed: Programs and verifies 64 Mb NOR Flash memory

   in 11.3 seconds.

* Built-in 144 universal pin drivers

* CE and RoHS Compliant



 ¢º Expanded Features

* Supports 63,268 IC devices from 248 manufacturers and continuing

* Programs devices with Vcc as low as 1.2V.

* Ultra fast programming speed: Programs and verifies 64 Mb NOR FLASH memory

   in 11.3 seconds.

* Built with 144 universal pin-drivers for support of today¡¯s most complex devices.

   Universal and device independent socket adapters are available for

   various packages up to 144 pins.

* The programmer operates in either PC hosted mode or stand-alone mode.

  o Under PC hosted mode, a PC controls the programmer via a high-speed

      USB2.0 connection to program a chip.

  o Under stand-alone mode, the user controls the programmer via

      20-characters, 4-line LCD display with 6-KEY

  o A CF (compact flash) card stores the project files.

* ISP/ICP programming capability through optional ISP/ICP adapter.

* In stand-alone mode, the user can operate multiple units to construct a concurrent

   multiprogramming system.

* Over-current and over-voltage protection for safety of the chip and

   programmer hardware.

* Compatible with Windows 7 & Vista & XP 32/64 bit

* Only IC manufacturer approved programming algorithms provide high reliability.

* Vcc verification at (+5%~-5%) and (10%~-10%) enhances programming reliability.

* Includes the following advanced and powerful software functions:

  o Chip operation starts immediately upon proper chip insertion in Production Mode.

  o Project function simplifies processes such as device selection, file loading,

      device configuration setting, program option, and batch file setting into one step.

  o Password protection provides security for project files and production volume control.

  o Batch command combines device operations like program, verify,

      security into a single command at any sequence.

  o Serial number generators are available as standard or customer-specific functions.

  o Log file provides production quality tracking.

  o CE and RoHS Compliant

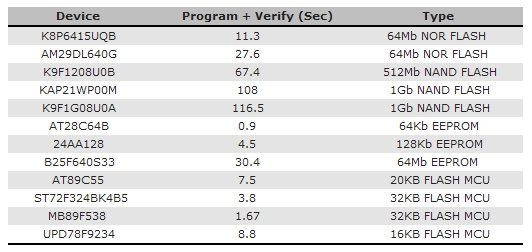

 ¢º Speep Comparison




 ¢º Volume Production Solutions (Clustering available)

By operating multiple programmers simultaneously you can use them in high

volume production environment.

Clustering of programmers provides for flexible and easy way for volume

production. Optional Compact Flash card is necessary to store user data,

and device algorithm in stand-alone operation. For most operation.

1 GB size is recommended

Click here for more information about Volume Production Solution

Check out our Socket Adapter page to find out the prices

of the socket adapters for your device



 ¢º Hardware & Electrical Specifications

* Devices Supported: EPROM, Paged EPROM, Parallel and Serial EEPROM,

   FPGA Configuration PROM, FLASH memory (NOR), BPROM, NVRAM,

   SPLD, CPLD, EPLD, Firmware HUB, Microcontroller, MCU, Standard Logic

* Package: DIP, SDIP, PLCC, JLCC, SOIC, QFP, TQFP, PQFP, VQFP, TSOP,

   SOP, TSOPII, PSOP, TSSOP, SON, EBGA, FBGA, VFBGA, uBGA, CSP, SCSP

* PC interface: USB2.0 (High speed)

* Stand-alone memory: Compact FLASH Card

* Power supply: AC Adapter: Input AC 100V- 240V; Output: 12V/1.5A

* Main unit: Dimensions 148(L) * 216(W) * 94(h) mm; Weight 3.5 lbs (1.6 Kg)

* Package: Dimensions 301(L) * 252(W) * 145(H) mm; Weight 6.2 lbs (2.8Kg)



 ¢º Items Included

* SuperPro 5000E Programmer with a DIP48 Adapter

* AC adapter

* Software CD

* USB Cable



 ¢º Device Updates

* XELTEK updates software and device algorithm regularly.

* View the latest Device
