¢º Highlights

* The largest device support in the industry: Supports 73,295 IC devices

    from 272 manufacturers and continuing

* Two programmers in one, a double value: PC mode for engineering and

    Stand-alone mode for production.

    The programmer operates in either PC o hosted mode or stand-alone mode.

  o Under PC hosted mode, a PC controls the programmer via a high-speed USB

      connection to program a chip.

  o Under stand-alone mode, the user controls the programmer via 20-characters,

      4-line LCD display with 6-KEY keypad.

  o A CF (compact flash) card stores the project files.

* Ultra-Fast Programming Speed: Programs and verifies 64 Mb NOR Flash memory

   in 11.3 seconds and 1 Gb NAND Flash in 108 seconds.

* Built-in 144 universal pin drivers

* Comes with one-year free device update request support.

* CE and RoHS Compliant

  ¢º Expanded Features

* Supports 73,295 IC devices from 272 manufacturers and continuing

* Programs devices with Vcc as low as 1.2V.

* Ultra fast programming speed: Programs and verifies 64 Mb NOR FLASH memory

   in 11.3 seconds and 1 GB NAND in 108 seconds.

* Built with 144 universal pin-drivers for support of today's most complex devices.

   Universal and device independent socket adapters are available

   for various packages up to 144 pins.

* The programmer operates in either PC hosted mode or stand-alone mode.

  o Under PC hosted mode, a PC controls the programmer via

      a high-speed USB2.0 connection to program a chip.

  o Under stand-alone mode, the user controls the programmer via

      20-characters, 4-line LCD display with 6-KEY

  o A CF (compact flash) card stores the project files.

* ISP/ICP programming capability through optional ISP/ICP adapter.

* In stand-alone mode, the user can operate multiple units to construct a concurrent

   multiprogramming system.

* Over-current and over-voltage protection for safety of the chip

   and programmer hardware.

* Compatible with Windows 7 & Vista & XP 32/64 bit

* Only IC manufacturer approved programming algorithms provide high reliability.

* Vcc verification at (+5%~-5%) and (10%~-10%) enhances programming reliability.

* Includes the following advanced and powerful software functions:

  o Chip operation starts immediately upon proper chip insertion in Production Mode.

  o Project function simplifies processes such as device selection, file loading,

     device configuration setting, program option, and batch file setting into one step.

  o Password protection provides security for project files and

     production volume control.

  o Batch command combines device operations like program, verify,

     security into a single command at any sequence.

  o Serial number generators are available as standard or

     customer-specific functions.

  o Log file provides production quality tracking.

 ¢º Speep Comparison

By operating multiple programmers simultaneously you can use them

in high volume production environment.

Clustering of programmers provides for flexible and easy way for volume production.

Optional Compact Flash card is necessary to store user data, and device algorithm

in stand-alone operation. For most operation. 256MB size is recommended.

Click here for more information about Volume Production Solution

 ¢º Hardware & electrical Specifications

* Devices Supported: EPROM, Paged EPROM, Parallel and Serial EEPROM,

   FPGA Configuration PROM, FLASH memory (NOR), BPROM, NVRAM, SPLD, CPLD,

   EPLD, Firmware HUB, Microcontroller, MCU, Standard Logic

* Package: DIP, SDIP, PLCC, JLCC, SOIC, QFP, TQFP, PQFP, VQFP, TSOP, SOP,

   TSOPII, PSOP, TSSOP, SON, EBGA, FBGA, VFBGA, uBGA, CSP, SCSP

* PC interface: USB2.0 (High speed)

* Stand-alone memory: Compact FLASH Card

* Power supply: AC Adapter: Input AC 100V- 240V; Output: 12V/1.5A

* Main unit: Dimensions 148(L) * 216(W) * 94(h) mm; Weight 3.5 lbs (1.6 Kg)

* Package: Dimensions 301(L) * 252(W) * 145(H) mm; Weight 6.2 lbs (2.8Kg)

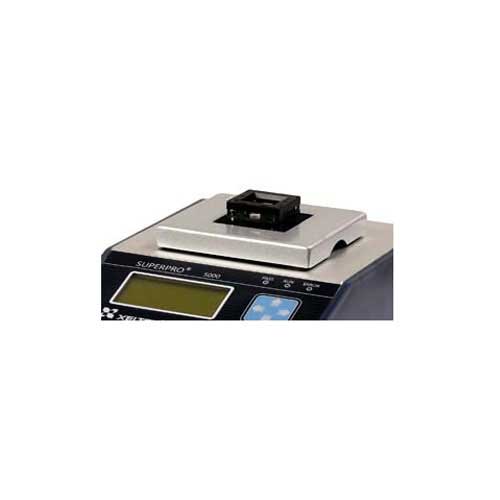

* SuperPro 5000 Programmer with a DIP48 Adapter

* AC adapter

* Software CD

* USB Cable
